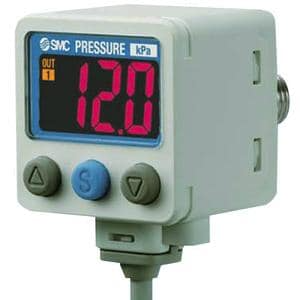

SMC ZSE40A01YX531 (ZSE40A-01-Y-X531) - Digital Pressure Switch, PNP 2 Outputs with M12 Connector, R1/8 Port

SMC ZSE40A01YX531 Digital Pressure Switch — PNP 2 Outputs, R1/8 Port, M12 Connector. SMC ZSE40A-01-Y-X531 is a 2-color display high-precision digital pressure switch for vacuum pressure. Output specification Y provides PNP open collector 2 outputs (with copy function). Made-to-order X531 = M12 4-pin pre-wired connector (lead wire length 100 mm). Vacuum rated range 0.0 to -101.3 kPa, set/display range 10.0 to -105.0 kPa, smallest settable increment 0.1 kPa, withstand pressure 500 kPa. Port 01 = R1/8 (with M5 female thread). Power supply 12 to 24 VDC, current consumption 45 mA or less. Max load current 80 mA, residual voltage 1 V or less, response time 2.5 ms. 3 1/2-digit 2-color (red/green) LCD, display accuracy +/-2% F.S. +/-1 digit, repeatability +/-0.2% F.S. Copy function to up to 10 sensors. Enclosure IP65. Standards UL/CSA, CE, RoHS.

MPN: ZSE40A-01-Y-X531 · SKU: ZSE40A01YX531

ZSE40A-01-Y-X531 Applications

The ZSE40A-01-Y-X531 is a rugged IP65 vacuum digital switch fitted with an M12 4-pin pre-wired connector (special X531) for quick, sealed connection on machinery using M12 cordsets. Its PNP dual outputs give two independent thresholds for vacuum pickup confirmation and low-vacuum alarms on vacuum pad and ejector systems, and the copy function transfers settings to up to ten sensors. The 2-color display flags faults at a glance. Well suited to washdown, automotive and packaging vacuum-handling lines needing durable connectorized vacuum monitoring.

ZSE40A-01-Y-X531 Specifications
