SMC ZSE30A01B (ZSE30A-01-B) - Digital Pressure Switch, PNP 2 Outputs, R1/8 Port

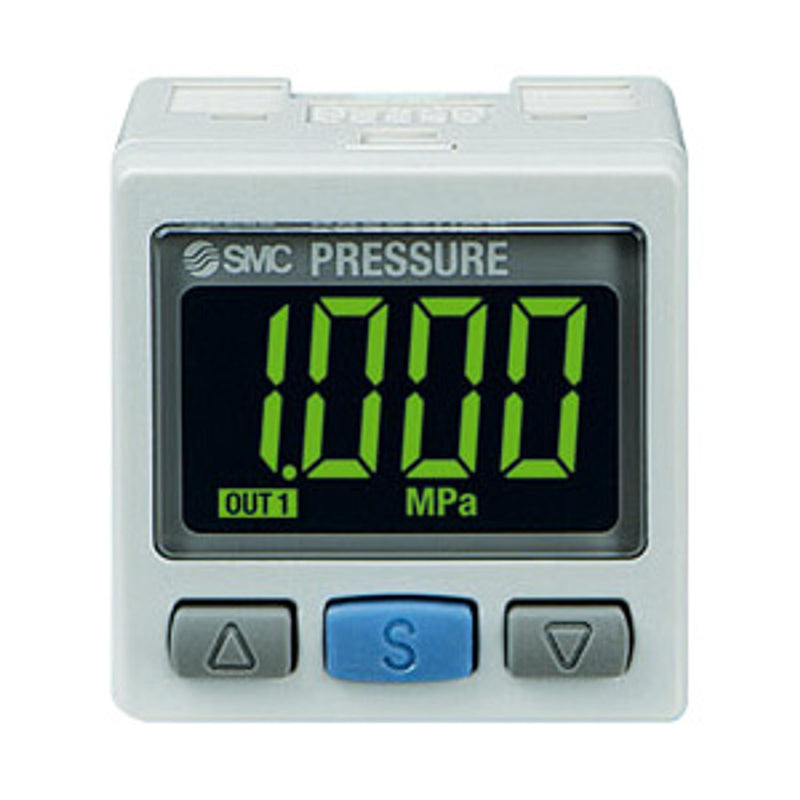

SMC ZSE30A01B Digital Pressure Switch — PNP 2 Outputs, R1/8 Port. SMC ZSE30A-01-B is a 2-color display high-precision digital pressure switch for vacuum pressure. Output specification B provides PNP open collector 2 outputs. Rated range 0.0 to -101.0 kPa, set/display range 10.0 to -105.0 kPa, smallest settable increment 0.1 kPa, withstand pressure 500 kPa. Port 01 = R1/8 (M5 female threaded). Power supply 12 to 24 VDC, current consumption 40 mA or less. Max load current 80 mA, max applied voltage 28 V (NPN reference), residual voltage 1 V or less, response time 2.5 ms or less. 4-digit 2-color (red/green) LCD, display accuracy +/-2% F.S. +/-1 digit, repeatability +/-0.2% F.S. Copy function to up to 10 slave sensors. Enclosure IP40. Standards UL/CSA, CE, RoHS.

MPN: ZSE30A-01-B · SKU: ZSE30A01B

ZSE30A-01-B Applications

The ZSE30A-01-B is a 2-color-display vacuum digital switch whose PNP dual outputs allow two independent thresholds, for example separate pickup-confirm and vacuum-loss alarms on vacuum pad and ejector systems. The red/green display flags abnormal conditions at a glance, and the copy function transfers settings to up to ten slave sensors, cutting setup time on multi-station machines. Used for suction verification and low-vacuum monitoring in pick-and-place, packaging and electronics handling equipment. Note this series is a vacuum-pressure switch superseded in range by the ZSE20 family.
