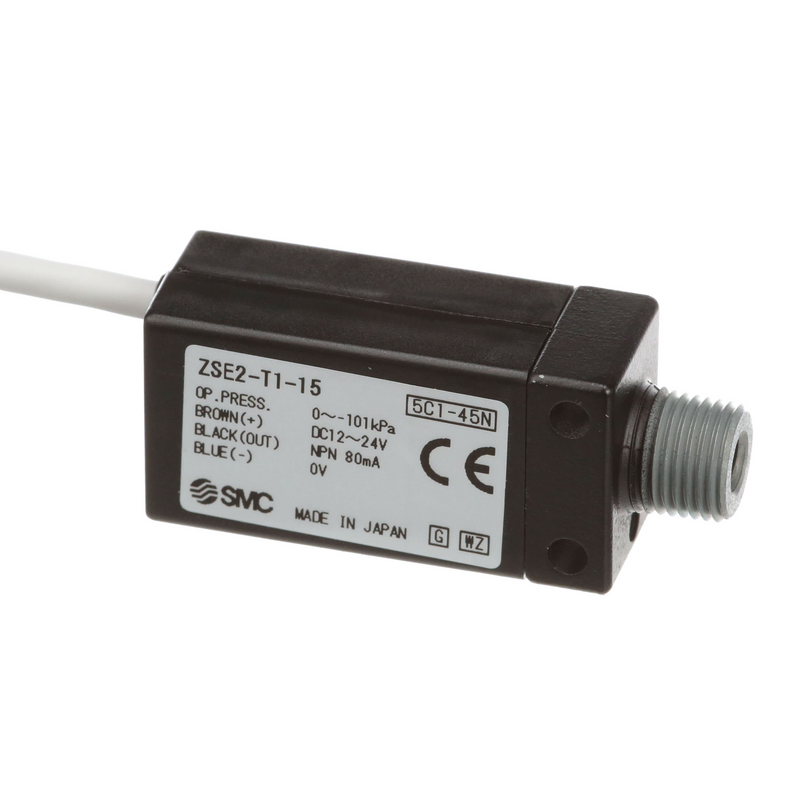

SMC ZSE2T115 (ZSE2-T1-15) - Compact Pressure Switch for Vacuum, NPTF 1/8 Port, NPN Output
SMC ZSE2T115 Compact Pressure Switch for Vacuum — NPTF 1/8 single mounting with NPN open collector output. Compact pressure switch for vacuum, single mounting NPTF 1/8, NPN open collector 1 output, without analog output, 200 degrees adjustment, grommet type with 0.6 m lead wire, suction filter as standard.
MPN: ZSE2-T1-15 · SKU: ZSE2T115
ZSE2-T1-15 Applications
The SMC ZSE2T115 is the NPTF 1/8 single mounting version with an NPN open collector output, so it threads directly into imperial-tapped vacuum ports and sinks its signal to a PLC input. It is used in pick-and-place cells, packaging lines and electronics assembly to confirm a workpiece is held before motion starts. It suits vacuum confirmation on suction cups, leak detection and end-of-arm tooling interlocks. A suction filter comes as standard to keep debris out, and it integrates directly with ZX or ZR ejector systems.
ZSE2-T1-15 Specifications
| Brand | SMC | Manufacturer Part No. | ZSE2-T1-15 |
| Product Type | Compact Pressure Switch for Vacuum | Series | ZSE2 |
| Porting Specifications | T1 - Single Mounting NPTF 1/8 | Output Specification | 15 - NPN open collector 1 output, without analog output, 200 degrees adjustment |
| Wiring Type | Grommet type (Lead wire: 0.6 m) | Filter | Suction filter comes as standard |
| Integration | Can be integrated with ZX or ZR ejector system |
