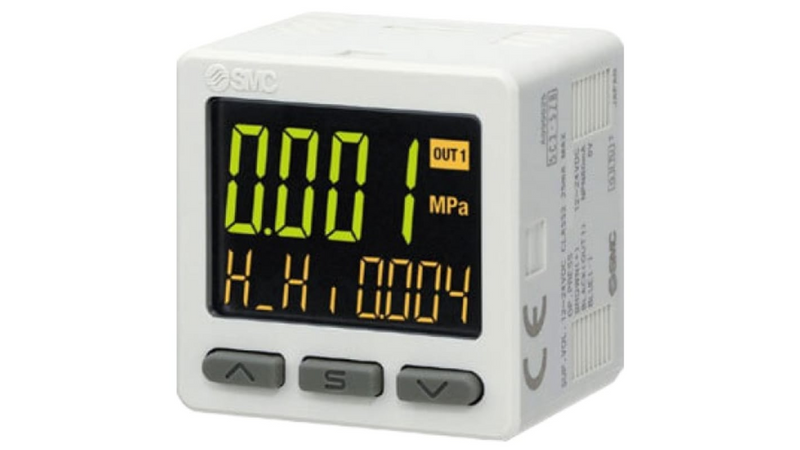

SMC ZSE20P01LA1 (ZSE20-P-01-LA1) - 3-Screen Display High-Precision Digital Pressure Switch for Vacuum/Compound Pressure, R1/8 Port, PNP Output

SMC ZSE20P01LA1 3-Screen Display High-Precision Digital Pressure Switch for Vacuum/Compound Pressure — PNP output with 2 m connector lead wire and vertical bracket A. 3-screen display high-precision digital pressure switch, rated pressure range 0 to -101 kPa, PNP open collector 1 output, R1/8 port, lead wire with connector 2 m, bracket A vertical mounting, delay time 1.5 ms or less, IO-Link compatible series.

MPN: ZSE20-P-01-LA1 · SKU: ZSE20P01LA1

ZSE20-P-01-LA1 Applications

The SMC ZSE20P01LA1 combines a PNP open collector output with a 2 m lead wire with connector and bracket A for vertical mounting, so it sources its signal to a PLC input and bolts upright onto a frame. It is used in pick-and-place cells, packaging, electronics assembly and vacuum handling plant. It suits vacuum confirmation before motion, leak detection and pressure trend monitoring. The 3-screen display shows the setting alongside the measured value for simple 3-step setup, and the 1.5 ms or less delay time keeps fast cycles responsive.

ZSE20-P-01-LA1 Specifications
