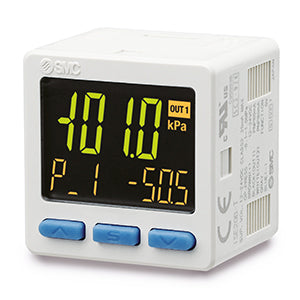

SMC ZSE20N01L (ZSE20-N-01-L) - Digital Pressure Switch, 101 to 100 kPa range, NPN digital vacuum switch

SMC ZSE20N01L Digital Pressure Switch — Vacuum digital switch, NPN output, R1/8 port, lead wire with connector. ZSE20-N-01-L high-precision digital pressure switch for vacuum with 3-screen / 3-color display. NPN open-collector 1 output (N); R1/8 (01) port; lead wire with connector (L). Pressure range approximately -101 to 100 kPa; repeatability +/-0.2% F.S.; response time down to 2.5 ms; current consumption approximately 25 mA; IP40; CE/RoHS compliant.

MPN: ZSE20-N-01-L · SKU: ZSE20N01L

ZSE20-N-01-L Applications

Monitors and switches on vacuum pressure in ejector and vacuum-pad handling systems, giving a discrete NPN signal when set vacuum is reached. The 3-screen, 3-color display shows live pressure plus set values for fast setup and at-a-glance status. Used on pick-and-place, packaging, and electronics assembly to confirm workpiece pickup and trigger downstream motion via the R1/8 process port.

ZSE20-N-01-L Specifications
