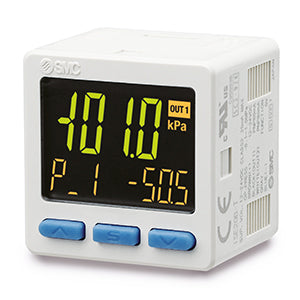

SMC ZSE20FP01L (ZSE20F-P-01-L) - Digital Pressure Switch, PNP Output, R1/8 Port

SMC ZSE20FP01L Digital Pressure Switch — PNP 1 Output, R1/8 Port. SMC ZSE20F-P-01-L is a 3-screen display high-precision digital pressure switch for compound pressure (vacuum plus low positive). Output specification P provides PNP open collector 1 output. Rated range -100.0 to 100.0 kPa, set/display range -105.0 to 105.0 kPa, smallest settable increment 0.001 MPa, withstand pressure 500 kPa. Port R1/8. Option L = lead wire with connector (3-core, 2 m). Power supply 12 to 24 VDC, current consumption 25 mA or less. Max load current 80 mA, residual voltage 1 V or less. Delay time 1.5 ms or less. Display accuracy +/-2% F.S. +/-1 digit, repeatability +/-0.2% F.S. Enclosure IP40. Standards UL/CSA, CE, RoHS.

MPN: ZSE20F-P-01-L · SKU: ZSE20FP01L

ZSE20F-P-01-L Applications

The ZSE20F-P-01-L is a compound-pressure (vacuum plus low positive) single-output digital switch, identical to the NPN variant but with a PNP open collector output for sourcing-input PLCs common in Europe. It monitors vacuum pickup and low-pressure air thresholds in automated handling and packaging equipment, signalling the controller when the set level is reached. The 3-screen display shows live, threshold and peak/bottom values simultaneously, and the auto-preset function derives optimum thresholds automatically for suction verification of vacuum pad and ejector applications.
