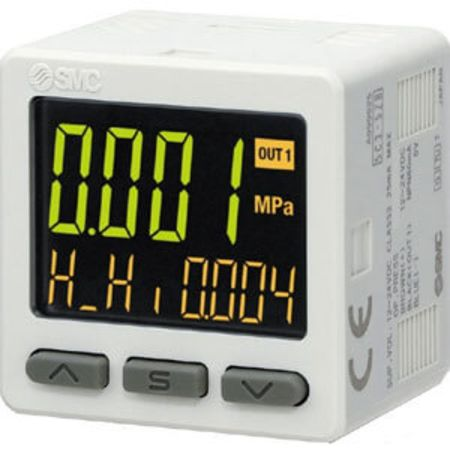

SMC ZSE20BT01W (ZSE20B-T-01-W) - Digital Pressure Switch, PNP Output with Analog Voltage, R1/8 Port

SMC ZSE20BT01W Digital Pressure Switch — PNP 2 Outputs + Analog Voltage, R1/8 Port, IP65. SMC ZSE20B-T-01-W is a 3-screen display high-precision digital pressure switch for vacuum pressure with IP65 enclosure. Output specification T provides PNP open collector 2 outputs plus analog voltage output (1 to 5 V, switchable to auto-shift or copy function). Vacuum rated range 0.0 to -101.0 kPa, set/display range 10.0 to -105.0 kPa, smallest settable increment 0.1 kPa, withstand pressure 500 kPa. Port R1/8. Option W = lead wire with connector (5-core, 2 m, with waterproof cover). Power supply 12 to 24 VDC, current consumption 35 mA or less. Display accuracy +/-2% F.S. +/-1 digit, repeatability +/-0.2% F.S. Enclosure IP65. Standards UL/CSA, CE, RoHS.

MPN: ZSE20B-T-01-W · SKU: ZSE20BT01W

ZSE20B-T-01-W Applications

The ZSE20B-T-01-W is the IP65 waterproof-cover version of the 3-screen vacuum switch, intended for wet or dusty vacuum handling environments such as food, packaging and machine-tool cells. Its PNP dual outputs plus 1 to 5 V analog voltage output let a controller trigger on pickup/release thresholds and simultaneously track the vacuum trend. The waterproof lead-wire cover and sealed body protect against splashing coolant and washdown. The auto-preset function sets optimum thresholds automatically for suction verification, making it suited to robust vacuum pad and ejector monitoring.

ZSE20B-T-01-W Specifications
