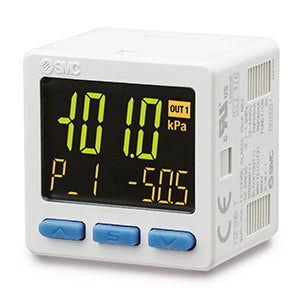

SMC ZSE20AY01J (ZSE20A-Y-01-J) - Digital Pressure Switch, 4-20 mA analog output, high-precision vacuum switch

SMC ZSE20AY01J Digital Pressure Switch — High-precision vacuum switch with 4-20 mA analog current output, R1/8 port. ZSE20A-Y-01-J high-precision digital pressure switch for vacuum with 3-screen / 3-color display. Analog current output 4 to 20 mA (Y) plus 2 switch outputs versus base ZSE20; R1/8 (01) port; J connector/lead option. Analog load impedance up to 300 ohm at 12 V / 600 ohm at 24 V. Pressure range approximately -101 to 100 kPa; repeatability +/-0.2% F.S.; copy function; IP40; CE/RoHS.

MPN: ZSE20A-Y-01-J · SKU: ZSE20AY01J

ZSE20A-Y-01-J Applications

Delivers a 4-20 mA analog current output for noise-immune long-run vacuum-level signaling plus dual switch outputs for threshold control. Preferred where analog current wiring is standard, such as larger machines and process lines needing continuous vacuum feedback to a PLC or DCS. Used in handling, packaging, and clamping systems; the copy function eases setup of multiple matched switches.

ZSE20A-Y-01-J Specifications
