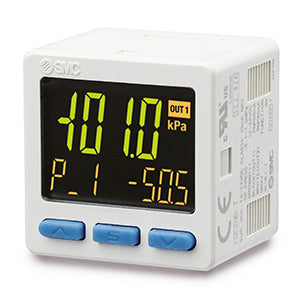

SMC ZSE20AFV01J (ZSE20AF-V-01-J) - Digital Pressure Switch, PNP Output with Analog Current, R1/8 Port

SMC ZSE20AFV01J Digital Pressure Switch — PNP 2 Outputs + Analog Current, R1/8 Port. SMC ZSE20AF-V-01-J is a 3-screen display high-precision digital pressure switch for vacuum/compound (low positive) pressure. Output specification V provides PNP open collector 2 outputs plus analog current output (2.4 to 20 mA, switchable to auto-shift or copy function). Compound pressure rated range -100.0 to 100.0 kPa, set/display range -105.0 to 105.0 kPa, smallest settable increment 0.001 MPa, withstand pressure 500 kPa. Port R1/8. Option J = lead wire with connector (5-core, 2 m). Power supply 12 to 24 VDC, current consumption 35 mA or less. Analog output max load impedance 300 ohm at 12 V / 600 ohm at 24 V, min 50 ohm. Display accuracy +/-2% F.S. +/-1 digit, repeatability +/-0.2% F.S. Enclosure IP40. Standards UL/CSA, CE, RoHS.

MPN: ZSE20AF-V-01-J · SKU: ZSE20AFV01J

ZSE20AF-V-01-J Applications

The ZSE20AF-V-01-J is a compound-pressure (vacuum plus low positive) digital switch whose PNP dual outputs plus 2.4 to 20 mA analog current output suit runs where wiring is long and noise immunity matters, such as monitoring vacuum cups and low-pressure air on automated assembly lines. The current output feeds a PLC analog input for continuous pressure logging while the two switch outputs handle threshold detection. The 3-screen display shows live, set and peak/bottom values at once, and the auto-preset function sets thresholds automatically for suction verification in handling and packaging machinery.
