SMC ZSE20AFT01J (ZSE20AF-T-01-J) - Digital Pressure Switch, PNP Output with Analog Voltage, R1/8 Port

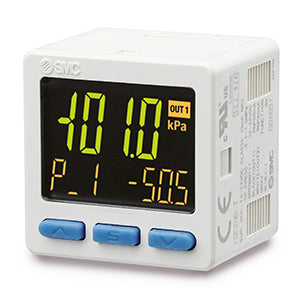

SMC ZSE20AFT01J Digital Pressure Switch — PNP 2 Outputs + Analog Voltage, R1/8 Port. SMC ZSE20AF-T-01-J is a 3-screen display high-precision digital pressure switch for vacuum/compound (low positive) pressure. Output specification T provides PNP open collector 2 outputs plus analog voltage output (0.6 to 5 V, switchable to auto-shift or copy function). Compound pressure rated range -100.0 to 100.0 kPa, set/display range -105.0 to 105.0 kPa, smallest settable increment 0.001 MPa, withstand pressure 500 kPa. Port R1/8. Option J = lead wire with connector (5-core, 2 m). Power supply 12 to 24 VDC, current consumption 35 mA or less. Display accuracy +/-2% F.S. +/-1 digit, repeatability +/-0.2% F.S. Enclosure IP40. 3-screen LCD (main red/green, 2 orange sub screens). Standards UL/CSA, CE, RoHS.

MPN: ZSE20AF-T-01-J · SKU: ZSE20AFT01J

ZSE20AF-T-01-J Applications

The ZSE20AF-T-01-J is a compound-pressure (vacuum plus low positive) digital switch used to verify workpiece pickup and release on vacuum pad and ejector systems, and to monitor low-pressure air lines. Its PNP dual switch outputs plus analog voltage output let a PLC both trigger on threshold events and log the continuous pressure trend. The 3-screen display shows the live reading, threshold and peak/bottom values simultaneously. The auto-preset function derives optimum set values automatically, making it well suited to pick-and-place, packaging and electronics handling equipment.
