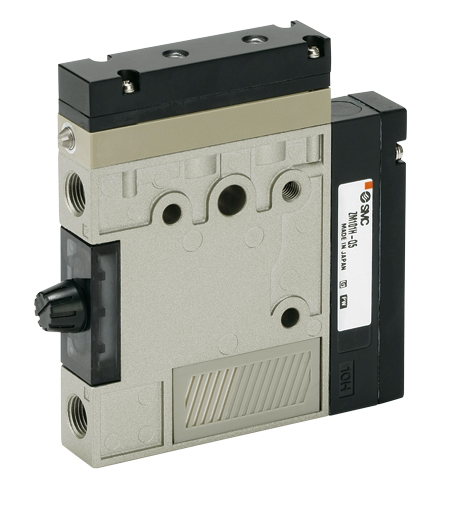

SMC ZM101HK5GE15 (ZM101H-K5G-E15) - Vacuum Ejector With Valve And Switch, 1.0 mm Nozzle, 24 VDC Coil

SMC ZM101HK5GE15 Vacuum Ejector With Valve And Switch — Grommet entry with 0.3 m lead wire and ZSE1 vacuum switch. Vacuum ejector with valve and switch, 1.0 mm nozzle, unit with valve and standard silencer, 0.5 MPa standard supply pressure, Rc thread, N.C. supply valve and release valve, 24 VDC, grommet entry with 0.3 m lead wire, E15 vacuum switch, maximum vacuum pressure -84 kPa.

MPN: ZM101H-K5G-E15 · SKU: ZM101HK5GE15

ZM101H-K5G-E15 Applications

The SMC ZM101HK5GE15 uses a plain grommet electrical entry with a 0.3 m lead wire and the E15 single-output ZSE1 vacuum switch, making it the compact hard-wired option in this unitised range. It is used in pick-and-place cells, packaging machinery, electronics assembly and robotic end effectors. It suits suction cup handling where valves, switch and ejector must sit in one body close to the pad. Unitising the valves and switch cuts tubing volume so vacuum builds and releases faster, and it can be manifold mounted.

ZM101H-K5G-E15 Specifications
