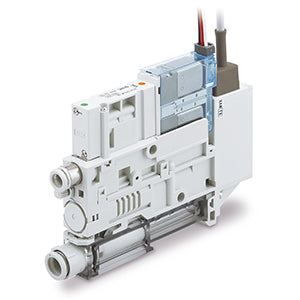

SMC ZK2A12K5RWA08 (ZK2A12K5RWA-08) - Vacuum Unit, ø1.2 mm nozzle

SMC ZK2A12K5RWA08 Vacuum Unit — ø1.2 mm nozzle ejector unit with valve + energy saving, ø8 port. ZK2*A Series single-unit ejector-system vacuum unit with a ø1.2 mm nozzle and integrated supply valve plus energy-saving (digital pressure switch) function. Maximum vacuum pressure of about -0.91 bar (-91 kPa) with high suction flow. 24 VDC supply-valve/solenoid (K5). One-touch fitting port for ø8 mm tubing (08). All-in-one design with supply valve, release valve, vacuum switch, vacuum-break flow needle, suction filter and silencer; the energy-saving mode reduces air consumption by intermittently energising the supply valve.

MPN: ZK2A12K5RWA-08 · SKU: ZK2A12K5RWA08

ZK2A12K5RWA-08 Applications

An all-in-one energy-saving vacuum unit for pick-and-place and handling automation, combining ejector, supply/release valves, digital pressure switch, filter and silencer. The ø1.2 mm nozzle gives high suction flow at up to about -0.91 bar for larger or porous workpieces such as board and panels. Its energy-saving control only re-energises the ejector when vacuum drops below a set point, cutting air consumption. The ø8 mm one-touch vacuum port and 24 VDC valve ease pneumatic and control integration.

ZK2A12K5RWA-08 Specifications
