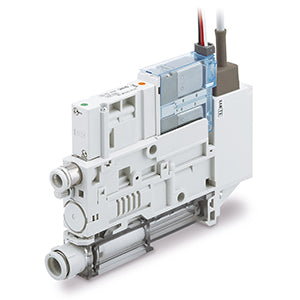

SMC ZK2A12K5CLA08 (ZK2A12K5CLA-08) - Vacuum Unit, ø1.2 mm nozzle

SMC ZK2A12K5CLA08 Vacuum Unit — ø1.2 mm nozzle ejector unit with valve, 2xPNP, ø8 port. ZK2*A Series single-unit ejector-system vacuum unit with a ø1.2 mm nozzle, integrated supply valve and vacuum switch. Maximum vacuum pressure of about -0.91 bar (-91 kPa) and maximum suction flow of about 74 L/min (ANR). 24 VDC supply-valve/solenoid (K5) with 2 x PNP vacuum-switch output. One-touch fitting port for ø8 mm tubing (08). All-in-one design with supply valve, release valve, vacuum switch, vacuum-break flow needle, suction filter and silencer.

MPN: ZK2A12K5CLA-08 · SKU: ZK2A12K5CLA08

ZK2A12K5CLA-08 Applications

A high-flow all-in-one vacuum unit for pick-and-place and handling machinery, integrating ejector, supply/release valves, vacuum switch, filter and silencer. The ø1.2 mm nozzle delivers up to about 74 L/min suction flow at roughly -0.91 bar, suiting larger or porous workpieces such as corrugated board, bags and panels. Includes 2 x PNP vacuum-switch outputs and a 24 VDC valve, with an ø8 mm one-touch vacuum port for quick pneumatic and control integration.

ZK2A12K5CLA-08 Specifications
