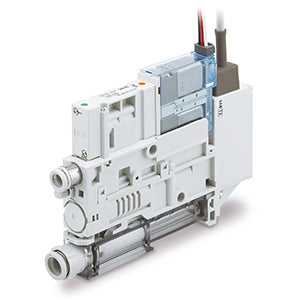

SMC ZK2A10K5TLA08 (ZK2A10K5TLA-08) - Ejector System Vacuum Unit, Single Unit, Ejector with Valve, 1.0 mm Nozzle, 24 VDC Coil
SMC ZK2A10K5TLA08 Ejector System Vacuum Unit, Single Unit, Ejector with Valve — Pressure sensor with 1 to 5 V analog output and N.C. supply and release valves. Ejector system vacuum unit, single unit, silencer exhaust, 1.0 mm nozzle, N.C. supply valve and N.C. release valve, 24 VDC, pressure sensor -100 to 100 kPa with 1 to 5 V analog output, 8 mm vacuum port, without energy saving function.
MPN: ZK2A10K5TLA-08 · SKU: ZK2A10K5TLA08
ZK2A10K5TLA-08 Applications
The SMC ZK2A10K5TLA08 is specified with a pressure sensor giving a 1 to 5 V analog output rather than a switch, and pairs N.C. supply and release valves so vacuum is not generated on power loss. It is used in pick-and-place cells, packaging, electronics assembly and robotic end effectors. It suits workpiece handling with suction cups, leak-rate monitoring via the analog signal, and fast release cycles. The integrated silencer exhaust keeps noise low, and the 1.0 mm nozzle with an 8 mm vacuum port balances suction flow against air consumption.
ZK2A10K5TLA-08 Specifications
| Brand | SMC | Manufacturer Part No. | ZK2A10K5TLA-08 |
| Product Type | Ejector System Vacuum Unit, Single Unit, Ejector + With Valve + Without Energy Saving Function | Series | ZK2A |
| Body / Exhaust Type | A - Body: Single Unit; Exhaust Type: Silencer Exhaust | Nominal Nozzle Size | 10 - 1.0 mm dia. |
| Supply / Release Valve Combination | K - Supply Valve: N.C.; Release Valve: N.C. | Rated Voltage | 5 - 24 VDC |
| Pressure Switch / Sensor | T - Pressure Sensor; -100 to 100 kPa; Analog Output 1 to 5 V | Connector Specifications | L - Supply/release valve 300 mm connector assembly; pressure switch 2 m lead wire with connector; sensor assembly 3 m with lead wire |
| Series Generation Symbol | A - ZK2A generation | Vacuum (V) Port | 08 - 8 mm dia. |
| Option a | Without Option | Option b | Without Option |
| Option c | Without Option |
