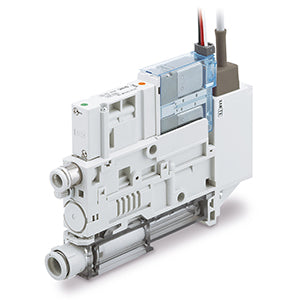

SMC ZK2A10K5CLA08 (ZK2A10K5CLA-08) - Vacuum Unit, ø1.0 mm nozzle

SMC ZK2A10K5CLA08 Vacuum Unit — ø1.0 mm nozzle ejector unit with valve, ø8 port. ZK2*A Series single-unit ejector-system vacuum unit with a ø1.0 mm nozzle, integrated supply valve and vacuum switch. Maximum vacuum pressure of about -0.91 bar (-91 kPa) with higher suction flow than the ø0.7 mm variant. 24 VDC supply-valve/solenoid (K5). One-touch fitting port for ø8 mm tubing (08). All-in-one design with supply valve, release valve, vacuum switch, vacuum-break flow needle, suction filter and silencer.

MPN: ZK2A10K5CLA-08 · SKU: ZK2A10K5CLA08

ZK2A10K5CLA-08 Applications

A compact all-in-one vacuum unit for pick-and-place and material-handling automation, combining ejector, supply/release valves, vacuum switch, filter and silencer. The ø1.0 mm nozzle offers higher suction flow than the 0.7 mm size while still reaching about -0.91 bar, suiting slightly larger or lightly porous workpieces such as cartons and small panels. The ø8 mm one-touch vacuum port and 24 VDC valve simplify pneumatic and electrical integration.

ZK2A10K5CLA-08 Specifications
