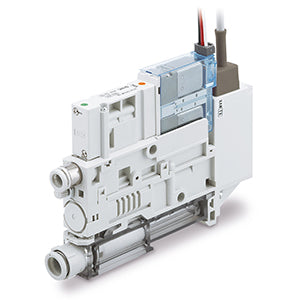

SMC ZK2A07K5PLA08 (ZK2A07K5PLA-08) - Vacuum Unit, ø0.7 mm nozzle

SMC ZK2A07K5PLA08 Vacuum Unit — ø0.7 mm nozzle ejector unit with valve, ø8 port. ZK2*A Series single-unit ejector-system vacuum unit with a ø0.7 mm nozzle, integrated supply valve and vacuum switch. Maximum vacuum pressure of about -0.91 bar (-91 kPa) and maximum suction flow of about 34 L/min (ANR). 24 VDC supply-valve/solenoid (K5). One-touch fitting port for ø8 mm tubing (08). All-in-one design with supply valve, release valve, vacuum switch, vacuum-break flow needle, suction filter and silencer.

MPN: ZK2A07K5PLA-08 · SKU: ZK2A07K5PLA08

ZK2A07K5PLA-08 Applications

A compact all-in-one point-of-use vacuum unit for pick-and-place and handling machines, integrating ejector, supply/release valves, vacuum switch, filter and silencer. The ø0.7 mm nozzle delivers up to about -0.91 bar vacuum at roughly 34 L/min, suiting handling of small, flat, non-porous parts such as electronics and thin sheet stock. The ø8 mm one-touch vacuum port and 24 VDC valve make tubing and control integration straightforward in automation cells.

ZK2A07K5PLA-08 Specifications
