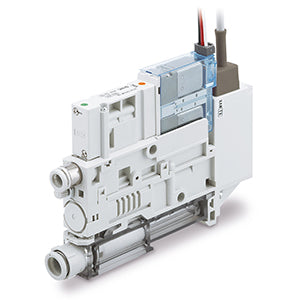

SMC ZK2A07K5HLA08 (ZK2A07K5HLA-08) - Vacuum Unit, ø0.7 mm nozzle

SMC ZK2A07K5HLA08 Vacuum Unit — ø0.7 mm nozzle, high-vacuum ejector unit with valve, ø8 port. ZK2*A Series single-unit ejector-system vacuum unit with a ø0.7 mm nozzle, supply valve and vacuum switch integrated. High-vacuum (H) type ejector with a maximum vacuum pressure of about -0.91 bar (-91 kPa) and maximum suction flow of about 34 L/min (ANR). 24 VDC supply-valve/solenoid (K5). One-touch fitting port for ø8 mm tubing (08). All-in-one design incorporating supply valve, release valve, vacuum switch, vacuum-break flow needle, suction filter and silencer.

MPN: ZK2A07K5HLA-08 · SKU: ZK2A07K5HLA08

ZK2A07K5HLA-08 Applications

An all-in-one point-of-use vacuum unit for pick-and-place and handling machines, combining ejector, supply/release valves, vacuum switch, filter and silencer in one compact body. The ø0.7 mm high-vacuum nozzle produces high vacuum (approximately -0.91 bar) at a modest suction flow, ideal for gripping small, flat, non-porous workpieces such as electronic components and thin sheets. The ø8 mm one-touch vacuum port and 24 VDC valve simplify tubing and control wiring in automated cells.

ZK2A07K5HLA-08 Specifications
