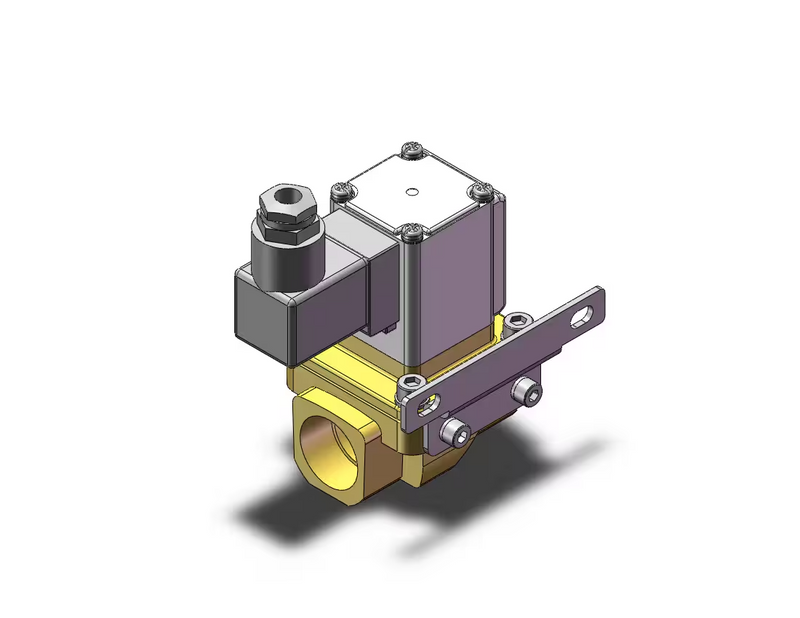

SMC VXZ252HGBXB - Zero Differential Pressure Type Pilot Operated 2 Port Solenoid Valve for Water, 3/4 Port, 24 VDC Coil
SMC VXZ252HGBXB Zero Differential Pressure Type Pilot Operated 2 Port Solenoid Valve for Water — 20A water build with NPT port thread and bracket. Zero differential pressure pilot operated 2 port valve for water, 20A body, C37 brass, 3/4 port, 20 mm orifice, N.C., 24 VDC, DIN terminal with surge voltage suppressor, NPT thread, with bracket, IP65.
MPN / SKU: VXZ252HGBXB
VXZ252HGBXB Applications
The SMC VXZ252HGBXB is the 20A water build specified with NPT port threads and a mounting bracket, suiting North American pipework and panel-mounted installations. It is used in water treatment, cooling towers, washdown systems and process plant. It suits main-line isolation, fill and drain control, and large-flow on/off duty. The zero differential pressure pilot construction opens with no minimum pressure drop, the 20 mm orifice on a 3/4 port passes high flow, and the IP65 housing handles wet environments.
VXZ252HGBXB Specifications
| Brand | SMC | Product Type | Zero Differential Pressure Type Pilot Operated 2 Port Solenoid Valve for Water |
| Series | VXZ | Size / Valve Type | 5 - Body Size 20A, N.C. |
| Medium | 2 - For Water | Body Material | H - C37 brass |
| Port Size | 3/4 | Orifice Diameter | 20 mm |
| Voltage / Electrical Entry | G - 24 VDC, DIN Terminal With Surge Voltage Suppressor | Special Voltage / Electrical Option | None |
| Other Option | B - Port Thread: NPT | Installation Options | XB - Special Electrical Entry Direction / With Bracket |
| Special Electrical Entry Direction | IN Side (Standard) | Enclosure | IP65 |
