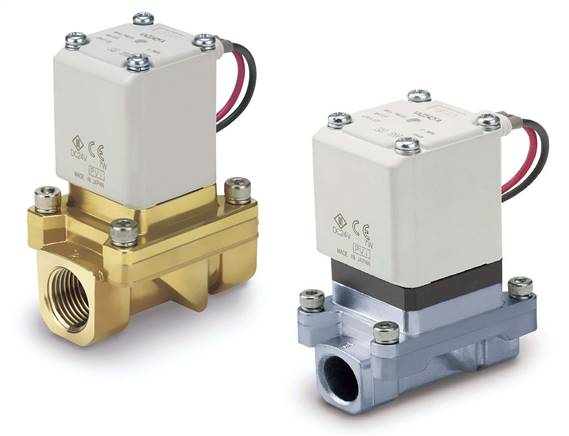

SMC VXZ240FG - Zero Differential Pressure Type Pilot Operated 2 Port Solenoid Valve for Air, 1/2 Port, 24 VDC Coil
SMC VXZ240FG Zero Differential Pressure Type Pilot Operated 2 Port Solenoid Valve for Air — 15A body for air with standard Rc port thread. Zero differential pressure pilot operated 2 port valve for air, 15A body, C37 brass, 1/2 port, 15 mm orifice, N.C., 24 VDC, DIN terminal with surge voltage suppressor, Rc thread, IP65.
MPN / SKU: VXZ240FG
VXZ240FG Applications
The SMC VXZ240FG is the 15A air-service build retaining the standard Rc port thread and standard entry direction. It is used in compressed air mains, blow-off headers, dryer and receiver circuits, and general factory automation. It suits main-line isolation, surge and blow control, and large-flow on/off duty where a direct-operated valve would need too large a coil. The zero differential pressure pilot design opens with no minimum pressure drop required, and the IP65 housing suits washdown-adjacent and dusty plant areas.
VXZ240FG Specifications
| Brand | SMC | Product Type | Zero Differential Pressure Type Pilot Operated 2 Port Solenoid Valve for Air |
| Series | VXZ | Size / Valve Type | 4 - Body Size 15A, N.C. |
| Medium | 0 - For Air | Body Material | F - C37 brass |
| Port Size | 1/2 | Orifice Diameter | 15 mm |
| Voltage / Electrical Entry | G - 24 VDC, DIN Terminal With Surge Voltage Suppressor | Special Voltage / Electrical Option | None |
| Other Option | Standard - Port Thread: Rc | Installation Options | None |
| Special Electrical Entry Direction | IN Side (Standard) | Enclosure | IP65 |
