SMC VXD263NG Solenoid Valve — Pilot-operated 2-port valve for high-temperature oil, NPTF thread, stainless steel body. Pilot-operated 2-port solenoid valve (VXD2 series) for high-temperature oil, viscosity not exceeding 50 mm2/s. Fluid temperature -5 to 100 C. FKM seal material and Class H coil insulation standard. IP65 enclosure. NPTF thread piping (N). Stainless steel body / Ag shading coil option (G). Port size 1/4 to 1 inch. Cv 1.9 to 49..
MPN / SKU: VXD263NG
VXD263NG Applications
The VXD263NG is a pilot-operated 2-port solenoid valve from SMC's VXD2 series configured for high-temperature oil service (viscosity up to 50 mm2/s, fluid temperature -5 to 100 C). Its FKM seals and Class H coil insulation suit hot-oil circuits, while the IP65 enclosure and stainless steel body option provide durability in demanding process and machine-tool lubrication or hydraulic applications. NPTF threaded ports allow direct in-line piping.
VXD263NG Specifications
| Brand | SMC | Series | VXD2 |
| Type | Pilot-operated 2-port solenoid valve | Media | High-temperature oil (viscosity =50 mm2/s) |
| Fluid Temperature | -5 to 100 C | Seal Material | FKM |
| Coil Insulation | Class H | Enclosure | IP65 |
| Thread Type | NPTF (N) | Body Option | Stainless steel / Ag shading coil (G) |
| Port Size | 1/4 to 1 inch |
VXD263NG Datasheet & Manual
Download Datasheet & ManualSMC VXD263NG · PDF · Official SMC documentTrusted by

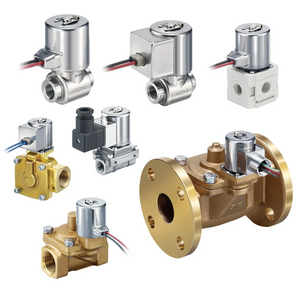

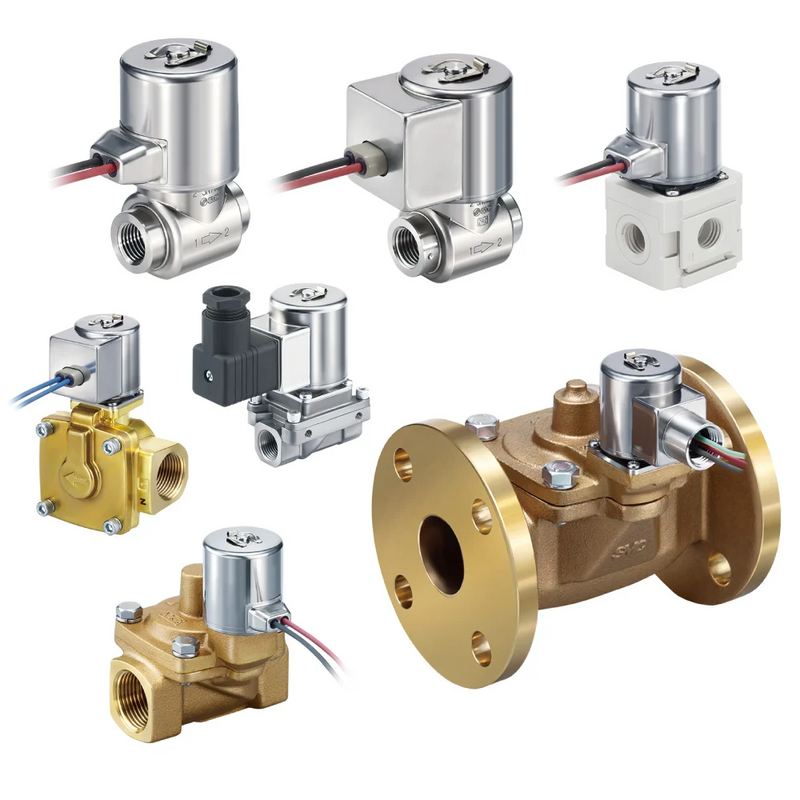

SMC VXD263NG - Solenoid Valve, High-Temperature Oil
Brand: SMC
