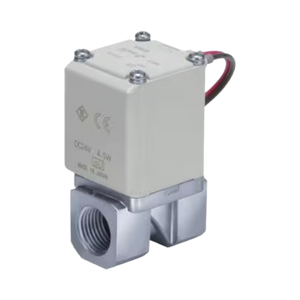

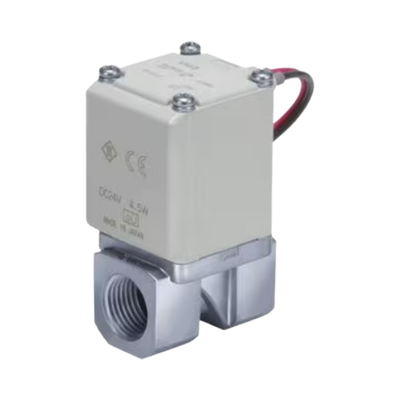

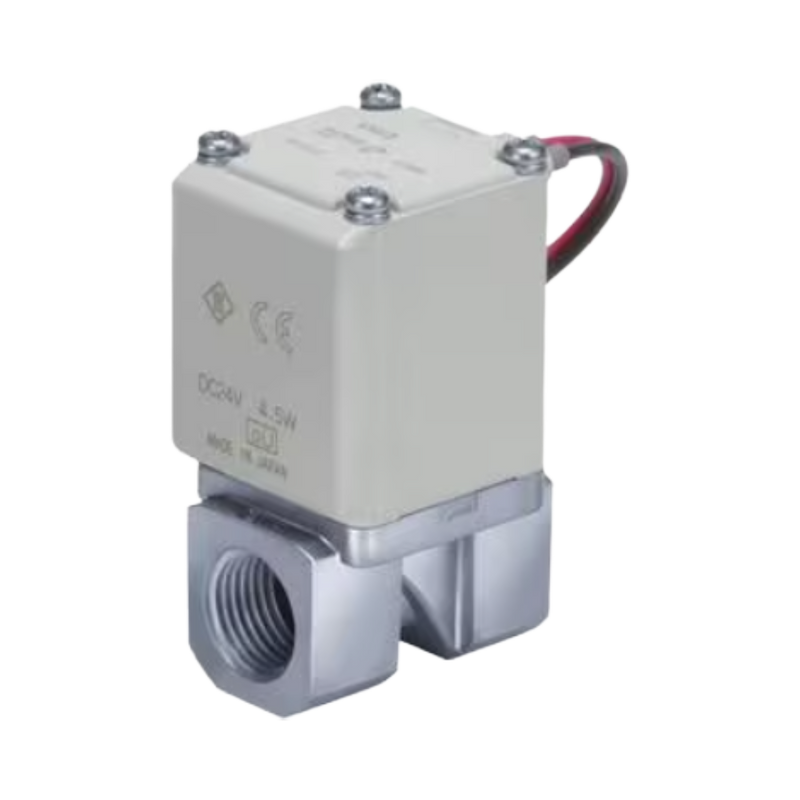

SMC VX234GGAXCC - Direct Operated 2 Port Solenoid Valve for Medium Vacuum, 1/2 Port, 24 VDC Coil
SMC VX234GGAXCC Direct Operated 2 Port Solenoid Valve for Medium Vacuum — Special G thread with electrical entry rotated to 270 degrees. Direct operated 2 port valve for medium vacuum, size 3, C37 brass body, 1/2 port, 10 mm orifice, N.C., 24 VDC, DIN terminal with surge voltage suppressor, special G thread, 270 degree electrical entry direction.
MPN / SKU: VX234GGAXCC
VX234GGAXCC Applications
The SMC VX234GGAXCC differs from the standard VX234GG by adding the special G thread and rotating the electrical entry to 270 degrees, which clears obstructions where the connector would otherwise foul adjacent hardware. It is used in medium-vacuum circuits on pick-and-place cells, packaging lines and vacuum plant with tight cable routing. It suits vacuum isolation, break and hold duties. The size 3 coil and 10 mm orifice on a 1/2 port give high conductance, and direct operation opens the valve at zero differential pressure.
VX234GGAXCC Specifications
| Brand | SMC | Product Type | Direct Operated 2 Port Solenoid Valve for Medium Vacuum |
| Series | VX21/22/23 | Coil Size / Valve Type | 3 - Size 3, N.C. |
| Medium | 4 - For Medium Vacuum (single unit) | Body Material | G - C37 brass |
| Port Size | 1/2 (size 3) | Orifice Diameter | 10 mm (size 3) |
| Voltage / Electrical Entry | G - 24 VDC, DIN Terminal With Surge Voltage Suppressor | Electrical Option | None |
| Other Option | A - Special Thread: G | Mounting Option | XC - Special Electrical Entry Direction |
| Special Electrical Entry Direction | C - 270 degrees | Manifold Type No. | VVX21/VVX22/VVX23 |
