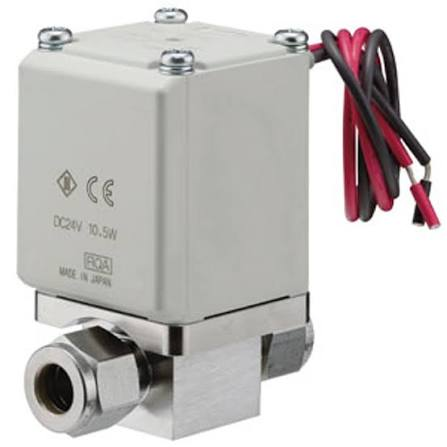

SMC VX232DZ3AA - Direct Operated 2 Port Solenoid Valve for Water, 3/8 Port, 24 VDC Coil
SMC VX232DZ3AA Direct Operated 2 Port Solenoid Valve for Water — Size 3 C37 brass body with 5 mm orifice and DIN terminal supplied without connector. Direct operated 2 port valve for water, size 3, C37 brass body, 3/8 port, 5 mm orifice, N.C., 24 VDC, DIN terminal with surge voltage suppressor without DIN connector, G thread.
MPN / SKU: VX232DZ3AA
VX232DZ3AA Applications
The SMC VX232DZ3AA uses the larger size 3 coil on a C37 brass body with a 5 mm orifice, and its DIN terminal is supplied without the DIN connector so the mating plug can be chosen on site. It is used in water circuits across process plant, cooling systems, washing machinery and general factory automation. It suits flow isolation, coolant and rinse control, and temperature-control loops. Direct operation gives reliable opening from zero differential pressure, and the surge suppressor protects the driving output.
VX232DZ3AA Specifications
| Brand | SMC | Product Type | Direct Operated 2 Port Solenoid Valve for Water |
| Series | VX21/22/23 | Coil Size / Valve Type | 3 - Size 3, N.C. |
| Medium | 2 - For Water (single unit) | Body Material | D - C37 brass |
| Port Size | 3/8 (size 3) | Orifice Diameter | 5 mm (size 3) |
| Voltage / Electrical Entry | Z - Other Voltages | Electrical Option | 3A - 24 VDC; DIN Terminal, With Surge Voltage Suppressor, Without DIN Connector |
| Other Option | A - Special Thread: G | Mounting Option | None |
| Special Electrical Entry Direction | Standard | Manifold Type No. | VVX21/VVX22/VVX23 |
