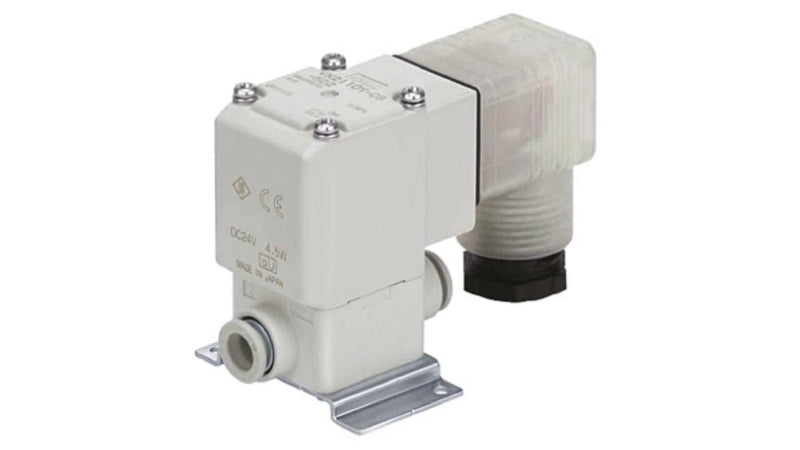

SMC VX210HG - Solenoid Valve, 2-port direct-operated normally-closed

SMC VX210HG Solenoid Valve — 2-port direct-operated poppet, normally closed, media valve. VX21/22/23 series (VX21) direct-operated 2-port solenoid valve for water, oil, steam and air. Direct-operated poppet construction, normally closed. Withstand pressure 5.0 MPa. Enclosure dusttight/low-jetproof (equivalent to IP65). Body brass/stainless steel; seals NBR/FKM/EPDM/PTFE. Class-H (H) high-temperature coil, EPDM seal (G) heated-water option (AC).

MPN / SKU: VX210HG

VX210HG Applications

The VX210HG is a direct-operated 2-port solenoid valve from SMC's VX21 series, built for media service including air, water, oil and steam. Direct-operated poppet construction lets it open from zero differential pressure, and the class-H coil with EPDM seal suits heated-water and higher-temperature lines. With an IP65-equivalent enclosure and brass/stainless body options, it is used for on/off shutoff and dosing in machine-tool coolant, hot-water, and general fluid-control circuits.

VX210HG Specifications
