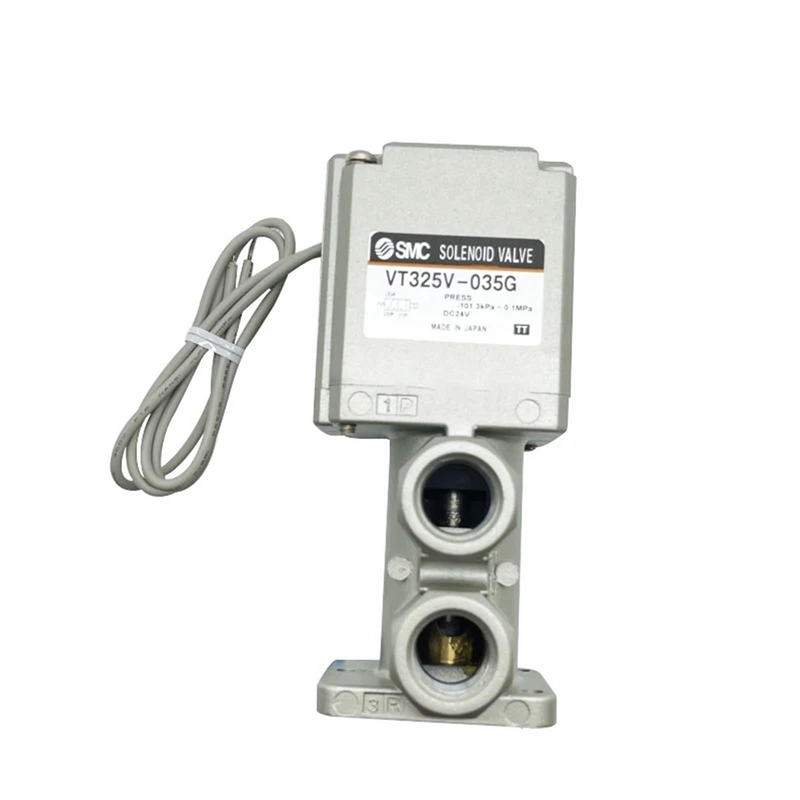

SMC VT325V035G (VT325V-035-G) - Solenoid Valve, 3-port direct-operated poppet vacuum

SMC VT325V035G Solenoid Valve — 3-port direct-operated poppet, vacuum spec, grommet entry. VT325 series 3-port direct-operated poppet solenoid valve, rubber seal, vacuum specification (V). Fluid: air; operating pressure range 0 to 1.0 MPa, vacuum to -101.2 kPa. Direct-operated 2-position single solenoid, response time 30 ms or less at 0.5 MPa, flow C 0.61 dm3/(s.bar) Rc3/8. Universal porting (6 valve functions). 3/8 port. 24 VDC, grommet (G) electrical entry with 300 mm lead wire, dustproof enclosure, non-locking manual override.

MPN: VT325V-035-G · SKU: VT325V035G

VT325V-035-G Applications

The VT325V-035-G is a 3-port direct-operated poppet solenoid valve from SMC's VT300 series in the vacuum-optimized V specification with low low-pressure leakage for vacuum service to -101.2 kPa. The grommet electrical entry provides a 300 mm flying lead for hard-wired connections, and the universal-porting body offers six valve functions. Compact with a large flow capacity, it is used for vacuum pick-and-place, blow-off and general 3-port air switching applications.

VT325V-035-G Specifications
