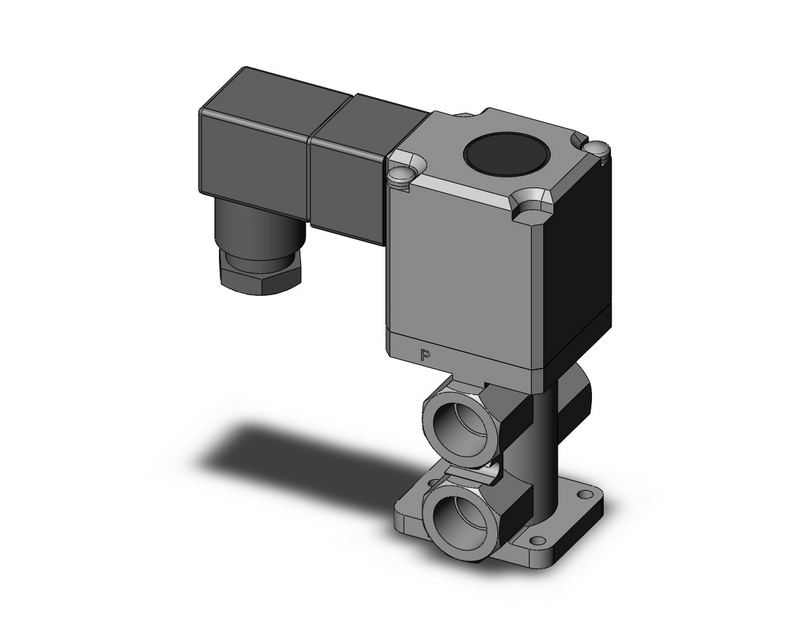

SMC VT325V035DQ (VT325V-035D-Q) - Solenoid Valve, 3-port direct-operated poppet vacuum

SMC VT325V035DQ Solenoid Valve — 3-port direct-operated poppet, vacuum spec, DIN terminal. VT325 series 3-port direct-operated poppet solenoid valve, rubber seal, vacuum specification (V). Fluid: air; operating pressure range 0 to 1.0 MPa, vacuum to -101.2 kPa. Direct-operated 2-position single solenoid, response time 30 ms or less at 0.5 MPa, flow C 0.61 dm3/(s.bar) Rc3/8. Universal porting (6 valve functions). 3/8 port. 24 VDC, DIN terminal (D) electrical entry, dustproof enclosure, non-locking manual override.

MPN: VT325V-035D-Q · SKU: VT325V035DQ

VT325V-035D-Q Applications

The VT325V-035D-Q is a 3-port direct-operated poppet solenoid valve from SMC's VT300 series in the vacuum-optimized V specification, which has reduced air leakage for low-pressure and vacuum service down to -101.2 kPa. Its universal-porting body provides six valve functions (N.C., N.O., divider, selector, etc.), and the DIN-terminal entry with 24 VDC coil suits panel wiring. Compact with large flow, it is used in vacuum handling, blow-off and general air control circuits.

VT325V-035D-Q Specifications
