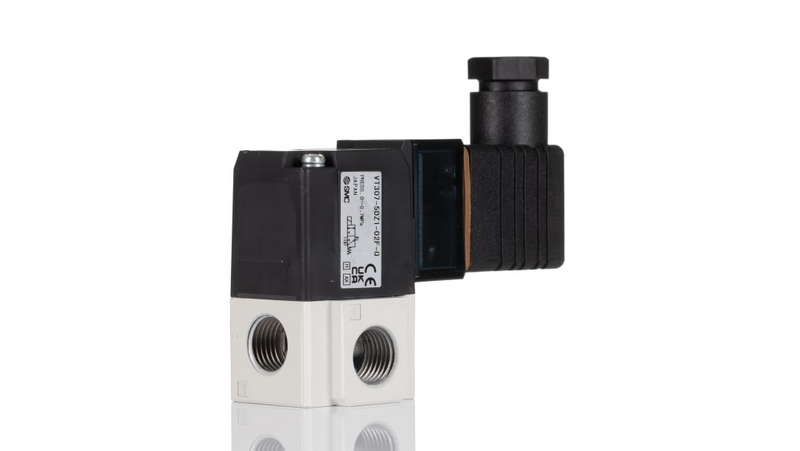

SMC VT3075DZ102FQ (VT307-5DZ1-02F-Q) - 3 Port Solenoid Valve, Direct Operated Poppet Type, 24 VDC Coil, G1/4 Port
SMC VT3075DZ102FQ 3 Port Solenoid Valve, Direct Operated Poppet Type — DIN terminal with connector plus light/surge voltage suppressor. Direct operated poppet type, rubber seal, 24 VDC, DIN terminal with connector, light/surge voltage suppressor, G1/4 port, 0.7 MPa standard pressure, 1.8 W.
MPN: VT307-5DZ1-02F-Q · SKU: VT3075DZ102FQ
VT307-5DZ1-02F-Q Applications
The SMC VT3075DZ102FQ ships with the DIN terminal connector fitted and adds a light/surge voltage suppressor, so it wires up out of the box and protects the driving PLC output from coil back-EMF. It is used in packaging, assembly and general factory automation on air, water and oil lines. It suits clamp and blow-off circuits, pilot duty for larger actuators, and universal porting where one valve covers N.C., N.O. or diverter service. The indicator light makes commissioning and fault-finding markedly faster.
VT307-5DZ1-02F-Q Specifications
| Brand | SMC | Manufacturer Part No. | VT307-5DZ1-02F-Q |
| Product Type | 3 Port Solenoid Valve, Direct Operated Poppet Type | Series | VT307 |
| Body Type | T - Body Ported | Valve Option | Standard Type |
| Pressure Specification | Standard Type 0.7 MPa | Rated Voltage | 5 - 24 VDC |
| Electrical Entry | D - DIN Terminal With Connector | Light/Surge Voltage Suppressor | Z - With Light/Surge Voltage Suppressor |
| Bore Size | 02 - 1/4 (8A) | Thread Type | F - G |
| Bracket | None | CE-compliant | Q - CE-compliant |
| Power Consumption | 1.8 W (low power consumption type) | Seal Material | Rubber seal (HNBR main valve) |
| Manifold Type No. | VV307 |
