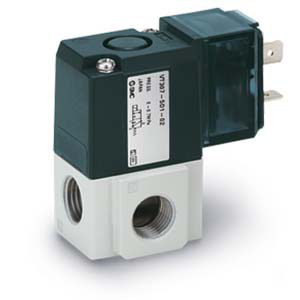

SMC VT3075DO102FQ (VT307-5DO1-02F-Q) - 3 Port Solenoid Valve, Direct Operated Poppet Type, 24 VDC Coil, G1/4 Port
SMC VT3075DO102FQ 3 Port Solenoid Valve, Direct Operated Poppet Type — DIN terminal without connector and no surge suppressor. Direct operated poppet type, rubber seal, 24 VDC, DIN terminal without connector, G1/4 port, 0.7 MPa standard pressure, low power consumption 1.8 W.
MPN: VT307-5DO1-02F-Q · SKU: VT3075DO102FQ
VT307-5DO1-02F-Q Applications
The SMC VT3075DO102FQ is specified when the DIN terminal is required without a connector and without a light/surge voltage suppressor, so the connector can be sourced to suit the panel. It is used in general factory automation, packaging lines, and air, water and oil circuits. It suits clamping and blow-off duties, pilot supply to larger actuators, and universal porting applications where one valve serves N.C., N.O. or diverter functions. Its low 1.8 W coil keeps cabinet heat and power draw down on densely populated manifolds.
VT307-5DO1-02F-Q Specifications
| Brand | SMC | Manufacturer Part No. | VT307-5DO1-02F-Q |
| Product Type | 3 Port Solenoid Valve, Direct Operated Poppet Type | Series | VT307 |
| Body Type | T - Body Ported | Valve Option | Standard Type |
| Pressure Specification | Standard Type 0.7 MPa | Rated Voltage | 5 - 24 VDC |
| Electrical Entry | DO - DIN Terminal Without Connector | Light/Surge Voltage Suppressor | None |
| Bore Size | 02 - 1/4 (8A) | Thread Type | F - G |
| Bracket | None | CE-compliant | Q - CE-compliant |
| Power Consumption | 1.8 W (low power consumption type) | Seal Material | Rubber seal (HNBR main valve) |
| Manifold Type No. | VV307 |
