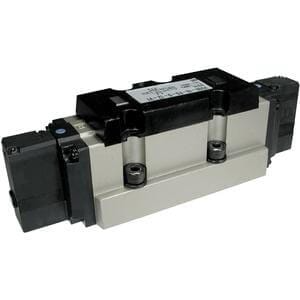

SMC VSR82FGS3VZQ (VSR8-2-FG-S-3VZ-Q) - 5 Port Solenoid Valve, ISO 15407-2 Standard, Individual Pilot Exhaust
SMC VSR82FGS3VZQ 5 Port Solenoid Valve — ISO 15407-2 size 18 mm plug-in valve with individual pilot exhaust. VSR8-2 series 5 port solenoid valve conforming to ISO 15407-2, plug-in type, rubber seal, size 18 mm, 2-position single solenoid, 24 VDC, individual pilot exhaust, with indicator light and surge voltage suppressor, CE-compliant.
MPN: VSR8-2-FG-S-3VZ-Q · SKU: VSR82FGS3VZQ
VSR8-2-FG-S-3VZ-Q Applications
The SMC VSR82FGS3VZQ conforms to the ISO 15407-2 valve interface and uses individual pilot exhaust, which sets it apart from common pilot exhaust builds in the VSS8/VSR8 range. It is used where a standardised, second-source-able valve footprint is specified on automotive, process and OEM machinery. It is suited for ISO manifold valve banks, vacuum or low-pressure circuits needing separate pilot venting, and installations demanding interchangeable valve interfaces. Being a plug-in type it carries no body port, taking its porting from the ISO manifold base.
VSR8-2-FG-S-3VZ-Q Specifications
| Brand | SMC | Manufacturer Part No. | VSR8-2-FG-S-3VZ-Q |
| Product Type | 5 Port Solenoid Valve, ISO 15407-2 Plug-in Type | Series | VSR8-2 (VSS8-2/VSR8-2/VSS8-4/VSR8-4) |
| Seal Type | Rubber (R) | Size | Size 18 mm (2) |
| Type Of Actuation | 2-Position (FG) | Number Of Solenoids | Single (S) |
| Rated Voltage | 24 VDC (3) | Pilot Exhaust | Individual Pilot Exhaust (V) |
| Light/Surge Voltage Suppressor | With Indicator Light/Surge Voltage Suppressor (Z) | Manual Override | Push Type |
| Pilot Specifications | Internal Pilot | CE-compliant | CE-compliant (Q) |
| Standard | Conforms To ISO 15407-2 |
