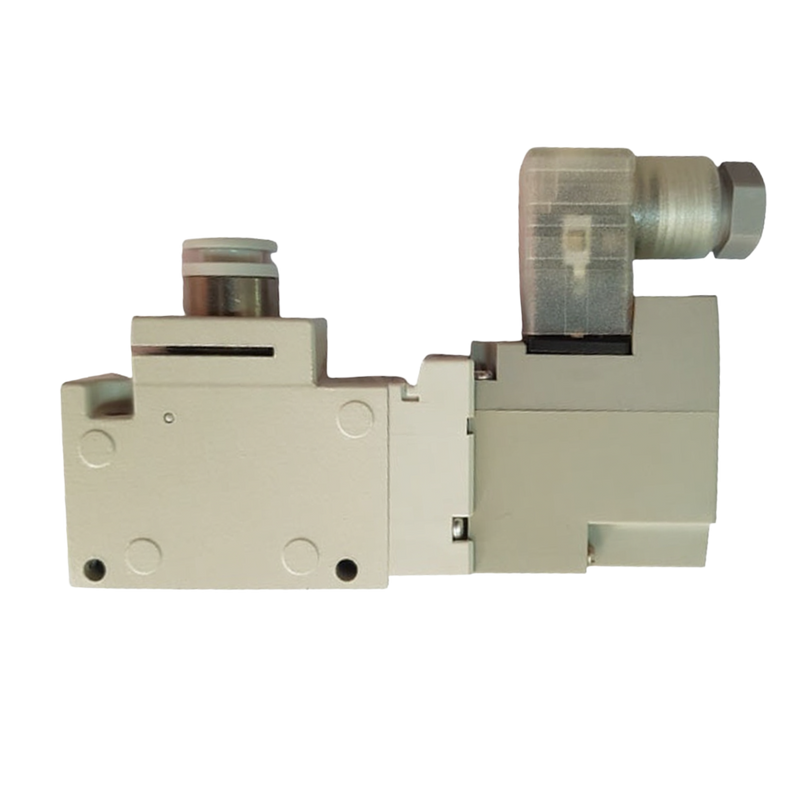

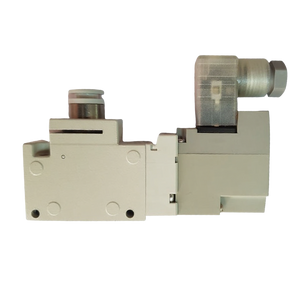

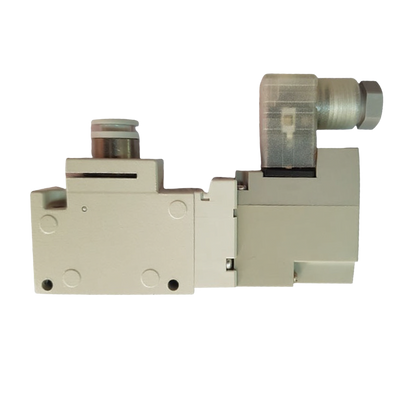

SMC VQZ3425YZ1C8 (VQZ342-5YZ1-C8) - 3 Port Solenoid Valve, Dia. 8 mm One-touch Port, Rubber Seal N.O.
SMC VQZ3425YZ1C8 3 Port Solenoid Valve — rubber seal N.O. with dia. 8 mm one-touch port. VQZ300 series 3 port solenoid valve, body ported single unit, 18 mm body width, rubber seal N.O., 24 VDC, DIN terminal, dia. 8 mm one-touch fitting 2(A) port, Rc thread.
MPN: VQZ342-5YZ1-C8 · SKU: VQZ3425YZ1C8
VQZ342-5YZ1-C8 Applications
The SMC VQZ3425YZ1C8 is the rubber seal normally-open build with a dia. 8 mm one-touch port, which distinguishes it from the normally-closed metal-seal VQZ3125YO102FQ in the same VQZ300 frame. It is used in 3 port air control on packaging, woodworking and general assembly machinery. It is suited for fail-open blow-off circuits, continuous purge duties, and pilot supply where air must flow when de-energised. The dia. 8 mm one-touch fitting lets tubing push straight in, removing threaded fittings and cutting installation time.
VQZ342-5YZ1-C8 Specifications
| Brand | SMC | Manufacturer Part No. | VQZ342-5YZ1-C8 |
| Product Type | 3 Port Solenoid Valve, Body Ported Single Unit | Series | VQZ300, Body Width 18 mm (3) |
| Mounting | Body Ported | Type Of Actuation | Rubber Seal N.O. (4) |
| Function | Standard | Coil Voltage | 24 VDC (5) |
| Electrical Entry | DIN Terminal (YZ) | Manual Override | Non-locking Push Type (Tool Required) |
| Port Size 2(A) Port | dia. 8 mm One-touch Fitting (C8) | Thread Type | Rc |
| Option | None | Made To Order | Standard |
