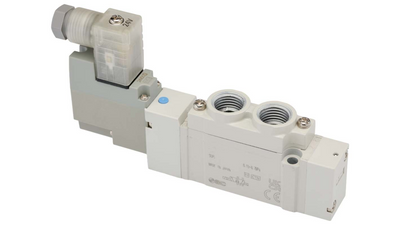

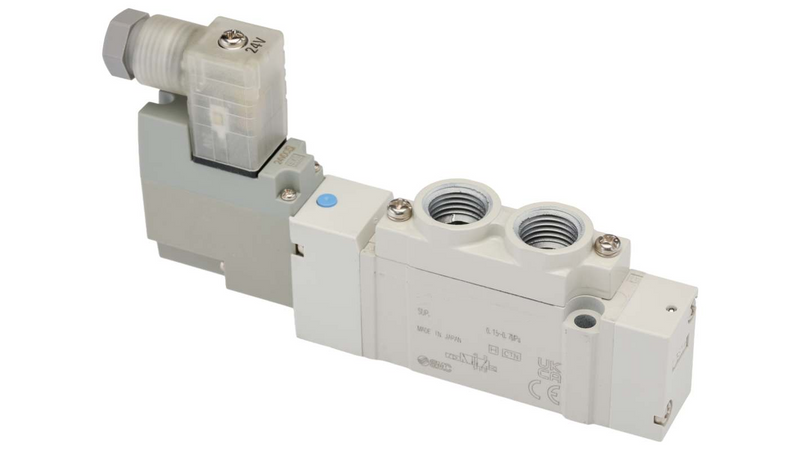

SMC VQZ32515YOS1 (VQZ3251-5YOS1) - 5 Port Solenoid Valve, 2 Position Double, Base Mounted
SMC VQZ32515YOS1 5 Port Solenoid Valve — 2 position double, base mounted without sub-plate, YOS DC-spec entry. VQZ3000 series 5 port solenoid valve, base mounted plug lead single unit, 18 mm body width, 2 position double, rubber seal, 24 VDC, DIN terminal without connector DC specification, supplied without sub-plate.
MPN: VQZ3251-5YOS1 · SKU: VQZ32515YOS1
VQZ3251-5YOS1 Applications
The SMC VQZ32515YOS1 is the 2 position double, base mounted build supplied without a sub-plate and using the YOS DC-specification entry, which separates it from the body-ported single-solenoid VQZ31215Y102Q in the same VQZ3000 frame. It is used in manifold-mounted valve banks on packaging, assembly and handling machinery. It is suited for memory-function circuits that hold position on power loss, dense multi-valve installations, and sub-plate or manifold retrofits. Being base mounted, it carries no body port - porting comes from the sub-plate.
VQZ3251-5YOS1 Specifications
| Brand | SMC | Manufacturer Part No. | VQZ3251-5YOS1 |
| Product Type | 5 Port Solenoid Valve, Base Mounted Plug Lead Single Unit | Series | VQZ3000, Body Width 18 mm (3) |
| Mounting | Base Mounted | Type Of Actuation | 2 Position Double (2) |
| Seal | Rubber Seal (1) | Function | Standard Type |
| Coil Voltage | 24 VDC (5) | Electrical Entry | DIN Terminal Without Connector, DC Specification (YOS) |
| Manual Override | Non-locking Push Type (Tool Required) | Bore Size | Without Sub-plate |
| Thread Type | Rc Or Without Sub-Plate | Made To Order | Standard |
