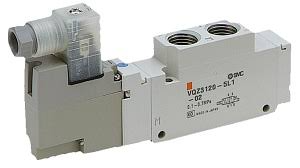

SMC VQZ31215Y102Q (VQZ3121-5Y1-02-Q) - 5 Port Solenoid Valve, Rc1/4 Port, 2 Position Single
SMC VQZ31215Y102Q 5 Port Solenoid Valve — 2 position single with Rc1/4 body port and DIN terminal. VQZ3000 series 5 port solenoid valve, body ported plug lead single unit, 18 mm body width, 2 position single, rubber seal, 24 VDC, DIN terminal, Rc1/4 port, CE-compliant.
MPN: VQZ3121-5Y1-02-Q · SKU: VQZ31215Y102Q
VQZ3121-5Y1-02-Q Applications
The SMC VQZ31215Y102Q is the 2 position single build with an Rc1/4 body port and a DIN terminal, which sets it apart from the double-solenoid, sub-plate-mounted VQZ32515YOS1 in the same VQZ3000 frame. It is used in general factory automation driving double-acting cylinders on packaging, assembly and materials-handling machines. It is suited for spring-return valve duty, standalone body-ported installation without a manifold, and retrofit into existing Rc1/4 pipework. The DIN terminal accepts standard EN175301-803 connectors for fast wiring.
VQZ3121-5Y1-02-Q Specifications
| Brand | SMC | Manufacturer Part No. | VQZ3121-5Y1-02-Q |
| Product Type | 5 Port Solenoid Valve, Body Ported Plug Lead Single Unit | Series | VQZ3000, Body Width 18 mm (3) |
| Mounting | Body Ported | Type Of Actuation | 2 Position Single (1) |
| Seal | Rubber Seal (1) | Function | Standard Type |
| Coil Voltage | 24 VDC (5) | Electrical Entry | DIN Terminal (Y) |
| Manual Override | Non-locking Push Type (Tool Required) | Bore Size | Rc1/4 (02) |
| Thread Type | Rc | Bracket | Without Bracket |
| CE-compliant | CE-compliant (Q) |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
