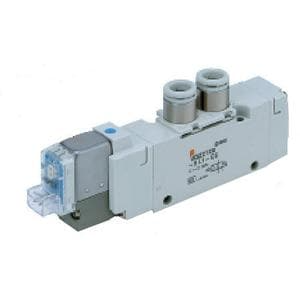

SMC VQZ2220BR5YO1C6FQ (VQZ2220BR-5YO1-C6F-Q) - 5 Port Solenoid Valve, Dia. 6 mm One-touch Port, High Speed Response
SMC VQZ2220BR5YO1C6FQ 5 Port Solenoid Valve — BR high speed response external pilot with dia. 6 mm one-touch port. VQZ2000 series 5 port solenoid valve, body ported plug lead single unit, 15 mm body width, 2 position double, metal seal, high speed response/external pilot, 24 VDC, DIN terminal without connector, dia. 6 mm one-touch fitting, G thread, CE-compliant.
MPN: VQZ2220BR-5YO1-C6F-Q · SKU: VQZ2220BR5YO1C6FQ
VQZ2220BR-5YO1-C6F-Q Applications
The SMC VQZ2220BR5YO1C6FQ uses the BR high speed response external pilot construction with a dia. 6 mm one-touch port, setting it apart from standard internal-pilot VQZ2000 siblings. It is used in fast-cycling automation on electronics assembly, packaging and sorting equipment. It is suited for rapid actuator switching, low-pressure main circuits that still need reliable pilot operation, and vacuum applications where an external pilot is essential. The 15 mm body width keeps valve banks compact on densely populated machines.
VQZ2220BR-5YO1-C6F-Q Specifications
| Brand | SMC | Manufacturer Part No. | VQZ2220BR-5YO1-C6F-Q |
| Product Type | 5 Port Solenoid Valve, Body Ported Plug Lead Single Unit | Series | VQZ2000, Body Width 15 mm (2) |
| Mounting | Body Ported | Type Of Actuation | 2 Position Double (2) |
| Seal | Metal Seal (0) | Function | High Speed Response / External Pilot Type (BR) |
| Coil Voltage | 24 VDC (5) | Electrical Entry | DIN Terminal Without Connector (YO) |
| Manual Override | Non-locking Push Type (Tool Required) | Bore Size | dia. 6 mm One-touch Fitting (C6) |
| Thread Type | G (F) | Bracket | Without Bracket |
| CE-compliant | CE-compliant (Q) |
