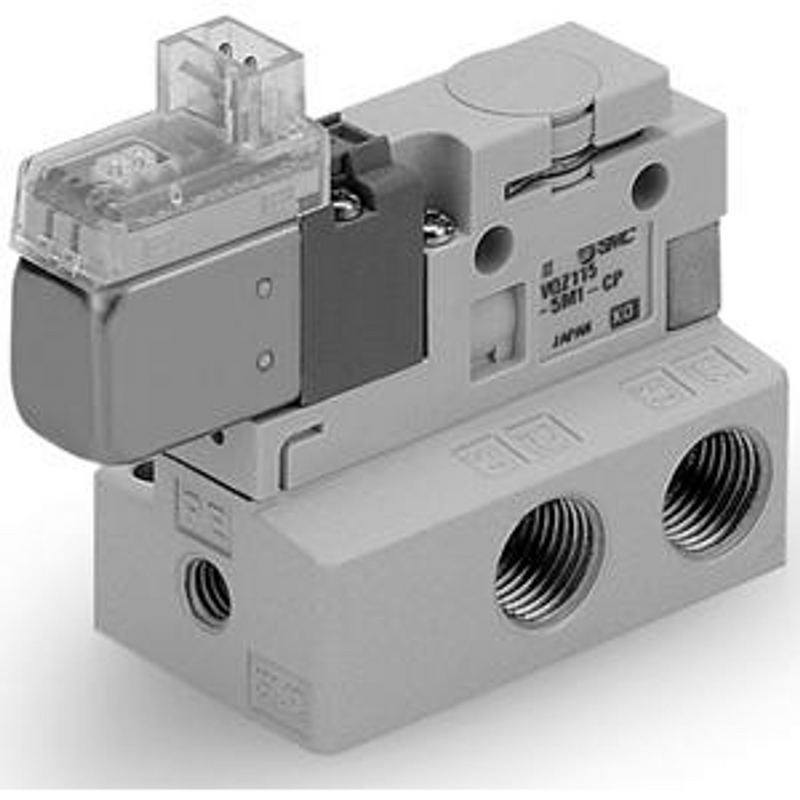

SMC VQZ115K5M101T (VQZ115K-5M1-01T) - 3 Port Solenoid Valve, Rc1/8 NPTF Port, M Plug Connector
SMC VQZ115K5M101T 3 Port Solenoid Valve — K high pressure type with Rc1/8 NPTF port and M plug connector. VQZ100 series 3 port solenoid valve, base mounted single unit, high pressure type, 24 VDC, M-type plug connector with 300 mm lead wire, Rc1/8 2(A) port, NPTF thread.
MPN: VQZ115K-5M1-01T · SKU: VQZ115K5M101T
VQZ115K-5M1-01T Applications
The SMC VQZ115K5M101T is the K high pressure type with an Rc1/8 NPTF port and an M plug connector, distinguishing it from standard-pressure VQZ100 siblings. It is used in compact 3 port air control on small automation cells, jigs and test rigs. It is suited for single-acting cylinder driving, vacuum pad release, and pilot supply to larger valves. The 300 mm lead on the M-type plug connector allows quick replacement without unwiring a terminal block, while the NPTF thread matches North American fittings.
VQZ115K-5M1-01T Specifications
| Brand | SMC | Manufacturer Part No. | VQZ115K-5M1-01T |
| Product Type | 3 Port Solenoid Valve, Base Mounted Single Unit | Series | VQZ100 |
| Mounting | Base Mounted | Function | High Pressure Type (K) |
| Coil Voltage | 24 VDC (5) | Electrical Entry | M-type Plug Connector With Lead Wire, Length 300 mm (M) |
| Manual Override | Non-locking Push Type | Port Size 2(A) Port | Rc1/8 (01) |
| Thread Type | NPTF (T) |
