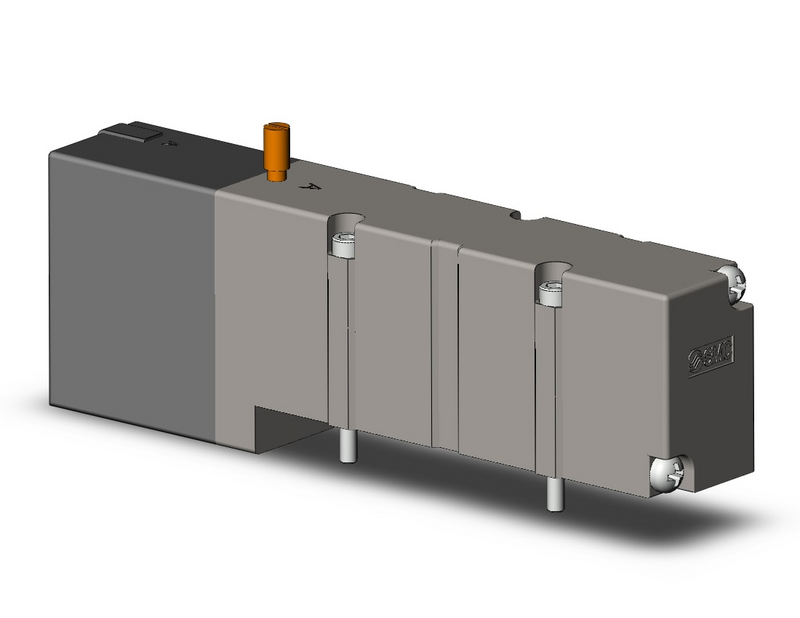

SMC VQC42015 (VQC4201-5) - 5 Port Solenoid Valve, 2 Position Double, With Surge Suppressor
SMC VQC42015 5 Port Solenoid Valve — 2 position double with light/surge voltage suppressor fitted. VQC4000 series 5 port solenoid valve, base mounted plug-in unit, 2 position double (metal/rubber), rubber seal, standard 1 W, 24 VDC, with light/surge voltage suppressor.
MPN: VQC4201-5 · SKU: VQC42015
VQC4201-5 Applications
The SMC VQC42015 is a 2 position double valve supplied with a light/surge voltage suppressor fitted, which distinguishes it from the single-solenoid, unsuppressed VQC410151. It is used in high-flow pneumatic control on automotive, metal-forming and heavy packaging equipment. It is suited for memory-function actuator circuits that must hold position on power loss, double-acting cylinder driving, and manifold valve banks. The integral suppressor protects PLC output transistors from coil back-EMF without extra components.
VQC4201-5 Specifications
| Brand | SMC | Manufacturer Part No. | VQC4201-5 |
| Product Type | 5 Port Solenoid Valve, Base Mounted Plug-in Unit | Series | VQC4000 |
| Type Of Actuation | 2 Position Double, Metal/Rubber (2) | Seal | Rubber Seal (1) |
| Function | Standard Type (1W) | Coil Voltage | 24 VDC (5) |
| Light/Surge Voltage Suppressor | With | Manual Override | Non-locking Push Type (Tool Required) |
