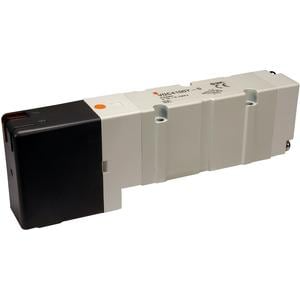

SMC VQC41015 (VQC4101-5) - Solenoid Valve, Plug-in base-mounted 5-port

SMC VQC41015 Solenoid Valve — Plug-in, base mounted, 5-port single solenoid. VQC4000 series 5-port (4/5 way) base-mounted plug-in pilot solenoid valve, single unit. Rubber seal, effective flow Cv 2.0. Max operating pressure 1.0 MPa, air/inert gas. IP67 enclosure, service life up to 100 million cycles per SMC test conditions. Multi-pin connector wiring for flexible manifold configuration.

MPN: VQC4101-5 · SKU: VQC41015

VQC4101-5 Applications

The VQC4101-5 is a large-flow plug-in 5-port pilot solenoid valve from SMC's VQC4000 series, used on plug-in manifolds to direct compressed air to double-acting cylinders and larger pneumatic actuators. Its multi-pin connector wiring simplifies station additions and manifold changes, while the IP67-rated enclosure suits dusty or wet automation cells. High Cv and long service life make it well suited to high-cycle production and packaging machinery.

VQC4101-5 Specifications
