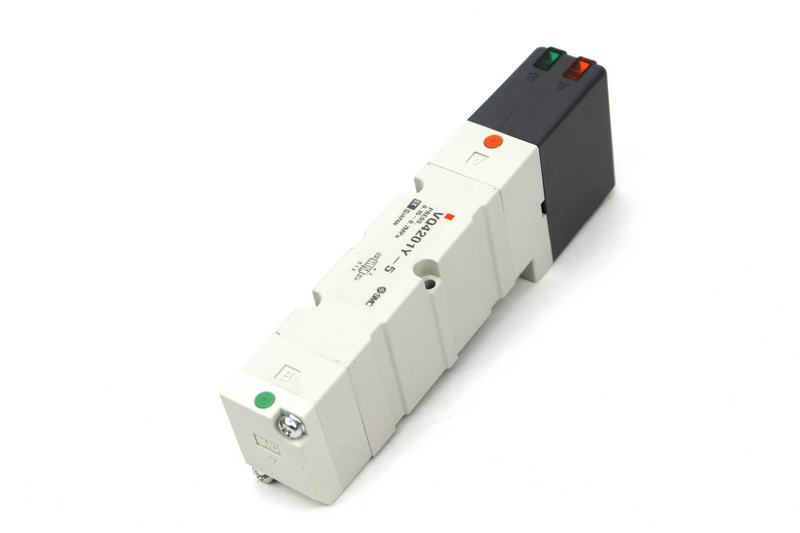

SMC VQ42015WQ (VQ4201-5W-Q) - 5 Port Solenoid Valve, 2 Position Double, Dusttight Enclosure
SMC VQ42015WQ 5 Port Solenoid Valve — W dusttight/low jetproof enclosure, 2-position double. VQ4000 series 5 port solenoid valve, base mounted plug-in unit, 2 position double, rubber seal, standard 1 W, 24 VDC, dusttight/low jetproof enclosure, side ported, CE-compliant.
MPN: VQ4201-5W-Q · SKU: VQ42015WQ
VQ4201-5W-Q Applications
The SMC VQ42015WQ is specified with the W dusttight/low jetproof enclosure, which is what sets it apart from standard-enclosure VQ4000 siblings. It is used in large-bore cylinder control on automotive, foundry and heavy packaging lines where washdown spray and airborne dust are present. It is suited for high-flow actuator driving, manifold valve banks, and harsh-environment machine sequencing. As a base mounted plug-in unit it carries no body port - porting is taken from the manifold sub-plate.
VQ4201-5W-Q Specifications
| Brand | SMC | Manufacturer Part No. | VQ4201-5W-Q |
| Product Type | 5 Port Solenoid Valve, Base Mounted Plug-in Unit | Series | VQ4000 |
| Type Of Actuation | 2 Position Double (2) | Seal | Rubber Seal (1) |
| Function | Standard Type (1W) | Coil Voltage | 24 VDC (5) |
| Light/Surge Voltage Suppressor | Yes | Manual Override | Non-locking Push Type (Tool Required) |
| Enclosure | Dusttight/Low Jetproof Type (W) | Porting Specifications | Side Ported |
| Port Size | Without Sub-plate (For manifold) | CE-compliant | CE-compliant (Q) |
