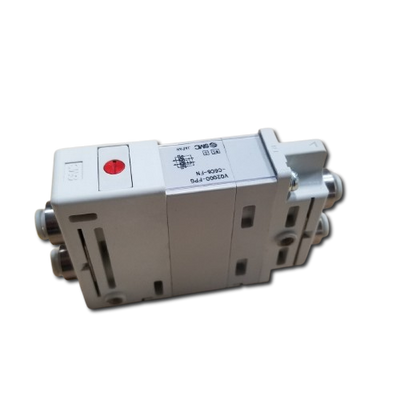

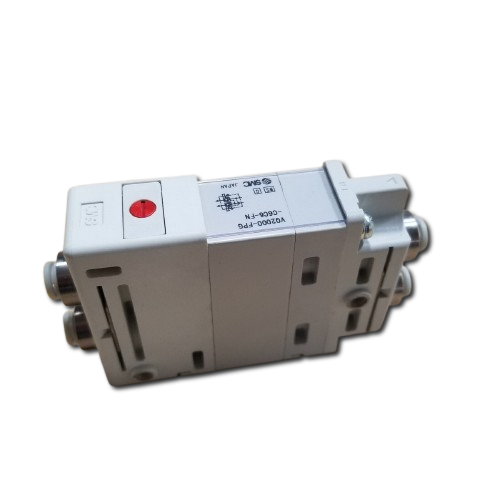

SMC VQ2000FPGC6C6FN (VQ2000-FPG-C6C6-FN) - Double Check Block, Dia. 6 mm One-touch Ports, With Bracket
SMC VQ2000FPGC6C6FN Double Check Block — double check block, not a valve, with bracket and name plate. Double check block for VQC1000/2000 series manifolds, IP67 enclosure, dia. 6 mm one-touch fitting IN and OUT ports, with bracket and name plate.
MPN: VQ2000-FPG-C6C6-FN · SKU: VQ2000FPGC6C6FN
VQ2000-FPG-C6C6-FN Applications
The SMC VQ2000FPGC6C6FN is a double check block rather than a solenoid valve, fitted to VQC1000 and VQC2000 series manifolds. It is used in drop-prevention and load-holding circuits on vertical cylinders in automotive, packaging and materials-handling machinery. It is suited for holding a raised load during an air failure, preventing actuator drift on emergency stop, and locking intermediate positions. Its dia. 6 mm one-touch fittings on both IN and OUT sides let it drop straight into an existing manifold run without rework.
VQ2000-FPG-C6C6-FN Specifications
| Brand | SMC | Manufacturer Part No. | VQ2000-FPG-C6C6-FN |
| Product Type | Double Check Block For VQC1000/2000 Series | Series | VQC2000 (2) |
| IN Side Port Size | For dia. 6 mm One-touch Fitting (C6) | OUT Side Port Size | For dia. 6 mm One-touch Fitting (C6) |
| Option | With Bracket + Name Plate (FN) | Enclosure | IP67 Compliant |
