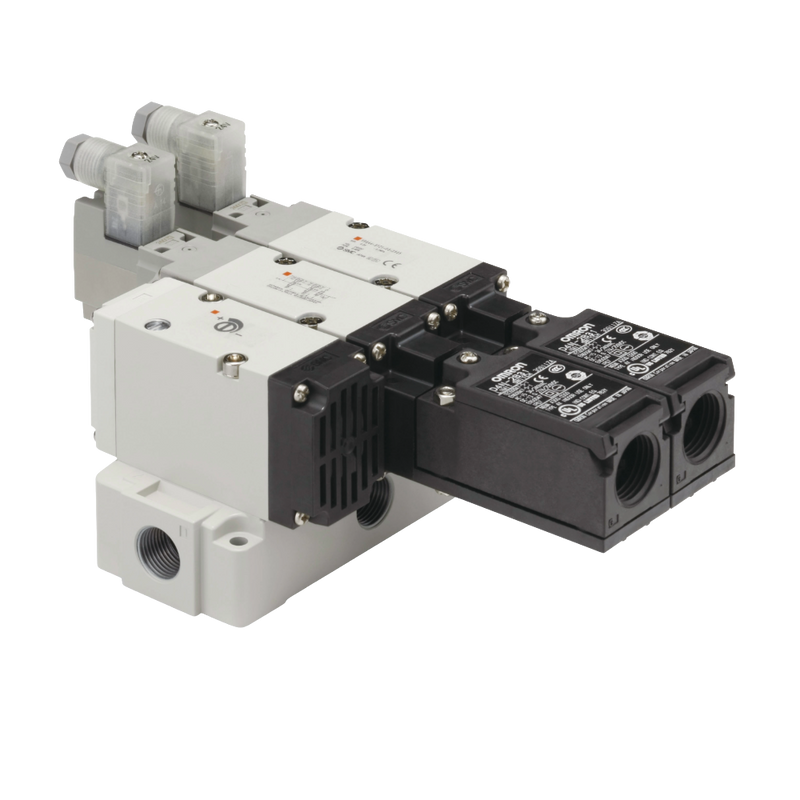

SMC VP7445YZ104FMX585 (VP744-5YZ1-04F-M-X585) - Dual Pressure Relief Valve, G1/2 Port, 1 MPa Rating
SMC VP7445YZ104FMX585 Dual Pressure Relief Valve — X585 dual pressure relief rated for 1 MPa safety control systems. Dual pressure relief 3 port solenoid valve for safety control systems, 1 MPa type, VP700 body, internal pilot, 24 VDC, DIN EN175301-803 terminal with light/surge voltage suppressor, G 1/2in port, M12 connector safety wiring.
MPN: VP744-5YZ1-04F-M-X585 · SKU: VP7445YZ104FMX585
VP744-5YZ1-04F-M-X585 Applications
The SMC VP7445YZ104FMX585 carries the X585 made-to-order code, which raises the dual pressure relief valve to the 1 MPa high-pressure class for safety control systems - the only thing that separates it from the otherwise identical VP7445YZ104FMX555. It is used where plant air runs above standard pressure, such as heavy clamping, press tooling and large-bore actuator circuits. It is suited for emergency-stop venting, redundant safety exhaust, and high-pressure isolation duties. The 1 MPa rating avoids derating a safety circuit to suit the valve.
VP744-5YZ1-04F-M-X585 Specifications
| Brand | SMC | Manufacturer Part No. | VP744-5YZ1-04F-M-X585 |
| Product Type | Dual Pressure Relief 3 Port Solenoid Valve (Safety Control System) | Series | VP700 / VP544-X585 |
| Body Size | VP700 (7) | Pilot Type | Internal Pilot |
| Rated Voltage | 24 VDC (5) | Electrical Entry | Type Y, DIN Terminal EN175301-803 (Y) |
| With Light Surge Voltage Suppressor | With Light/Surge Voltage Suppressor (Z) | Port Size | 1/2 (04) |
| Thread Type | G (F) | Safety Limit Switch/Wiring | M12 Connector, Made by OMRON (M) |
| With Check Valve | Without Check Valve | Throttle | Variable Throttle |
| Made To Order | X585 - Dual Pressure Relief, 1 MPa Type For Safety Control System | Max Pressure Class | 1 MPa |
