SMC VP5445DZ103FX538 (VP544-5DZ1-03F-X538) - ISO 13849-1 Certified 3 Port Solenoid Valve / Residual Pressure Release Valve, ISO 13849-1 Certified, Dual Residual Pressure Release

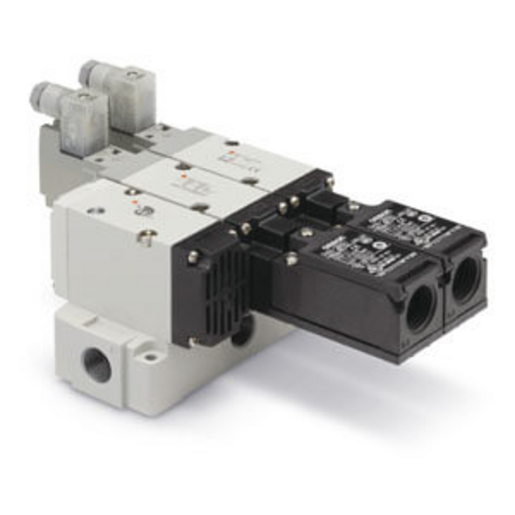

SMC VP5445DZ103FX538 ISO 13849-1 Certified 3 Port Solenoid Valve / Residual Pressure Release Valve — X538 made-to-order dual residual pressure release valve with detection of main valve position. VP500 base mounted, safety standard ISO13849-1 certified, dual residual pressure release valve with detection of main valve position, internal pilot, 24 VDC, DIN terminal with light and surge voltage suppressor, G3/8 port, variable throttle, safety limit switch G1/2 by OMRON.
MPN: VP544-5DZ1-03F-X538 · SKU: VP5445DZ103FX538
VP544-5DZ1-03F-X538 Applications
The SMC VP5445DZ103FX538 is used as the air isolation and exhaust element of a machine safety circuit. It is suited to safety related dump valve duty on guarded cells, redundant residual pressure release ahead of robot and press access, and installations validated to ISO 13849-1 categories 2 to 4. The dual valve construction with detection of main valve position lets a redundant, monitored system be built without custom engineering, and the integral safety limit switch reports the true main valve state back to the safety controller.
VP544-5DZ1-03F-X538 Specifications
| Brand | SMC | Manufacturer Part No. | VP544-5DZ1-03F-X538 |
| Product Type | ISO 13849-1 Certified 3 Port Solenoid Valve / Residual Pressure Release Valve | Series | VP500/700-X536,X538,X555 |
| SMC Series Description | VP500/700-X536,X538,X555 Series Safety Standard ISO13849-1 Certified 3 Port Solenoid Valve/Residual Pressure Release Valve With Detection Of Main Valve Position | Series Code | 5 - VP500 |
| Body Type | 4 - Base Mounted | Pilot Type | Internal Pilot |
| Voltage | 5 - 24 VDC | Electrical Entry | D - DIN Terminal |
| Light/Surge Voltage Suppressor | Z - With Light/Surge Voltage Suppressor | Port Size | 03 - 3/8" |
| Thread Type | F - G | Bracket For Modular Connection | None |
| Safety Limit Switch/Wiring | G1/2 (Made by OMRON) | With Check Valve | Without Check Valve |
| Throttle | Variable Throttle | Made To Order | X538 - Dual Residual Pressure Release Valve |
| Safety Standard | ISO 13849-1 certified (corresponding to category 2 to 4) |
