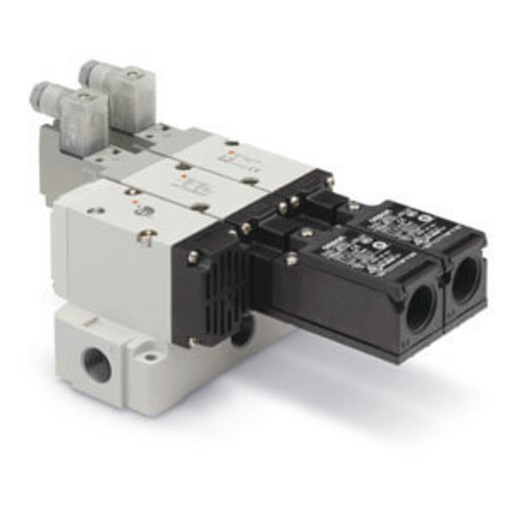

SMC VP5445DZ103FMX555 (VP544-5DZ1-03F-M-X555) - Solenoid Valve, 3-port body-ported, rubber seal

SMC VP5445DZ103FMX555 Solenoid Valve — Large-size VP500 3-port solenoid valve, DZ pilot, X555 special specification. SMC VP500 (VP300/500/700) series large-size 3-port solenoid valve, pilot-operated poppet type, body ported, die-cast aluminium body. DZ pilot (DC, with light/surge suppressor), 03F port/option, M-X555 special specification. Selectable N.C./N.O., vacuum applicable.

MPN: VP544-5DZ1-03F-M-X555 · SKU: VP5445DZ103FMX555

VP544-5DZ1-03F-M-X555 Applications

The SMC VP544-5DZ1-03F-M-X555 is a large-size VP500-series 3-port solenoid valve with a pilot-operated poppet design, DZ (DC pilot with light/surge voltage suppressor) coil, and die-cast aluminium body. It delivers high flow capacity with low power consumption and can serve as a selector or divider valve, including in vacuum service. The M-X555 suffix denotes a factory special specification, distinct from the X538 sibling. The DZ pilot distinguishes it from the YZ variant. Suited to demanding, high-flow pneumatic switching in industrial automation.

VP544-5DZ1-03F-M-X555 Specifications
