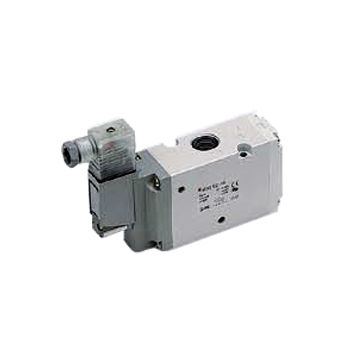

SMC VP542R5YO103FA (VP542R-5YO1-03FA) - 3 Port Solenoid Valve Rubber Seal Pilot Poppet Type, External Pilot, DIN Terminal Without Connector

SMC VP542R5YO103FA 3 Port Solenoid Valve Rubber Seal Pilot Poppet Type — external pilot type with the DIN terminal supplied without a connector. VP500 3 port solenoid valve, rubber seal pilot poppet type, body ported single unit, external pilot, standard 0.7 MPa, 24 VDC, DIN EN175301-803 terminal without connector, push-turn locking manual override, G3/8 port, N.C.

MPN: VP542R-5YO1-03FA · SKU: VP542R5YO103FA

VP542R-5YO1-03FA Applications

The SMC VP542R5YO103FA is used where the valve must switch on vacuum or low pressure lines that cannot supply their own pilot air. It is suited to vacuum circuits, low pressure blow-off, and supply switching where inlet pressure falls below the internal pilot minimum. The external pilot port takes clean pilot air from a separate line so the valve shifts reliably regardless of main line conditions, and the DIN terminal is supplied without a connector for sites that standardise on their own cable assemblies.

VP542R-5YO1-03FA Specifications
