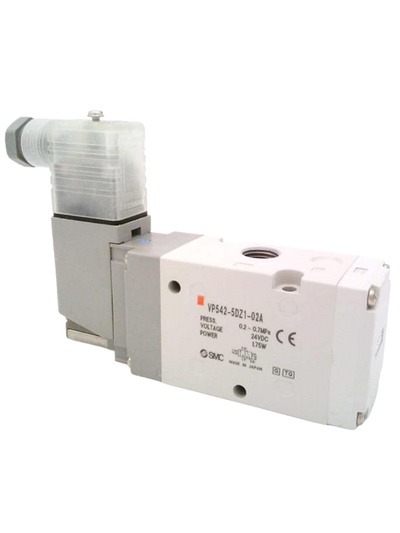

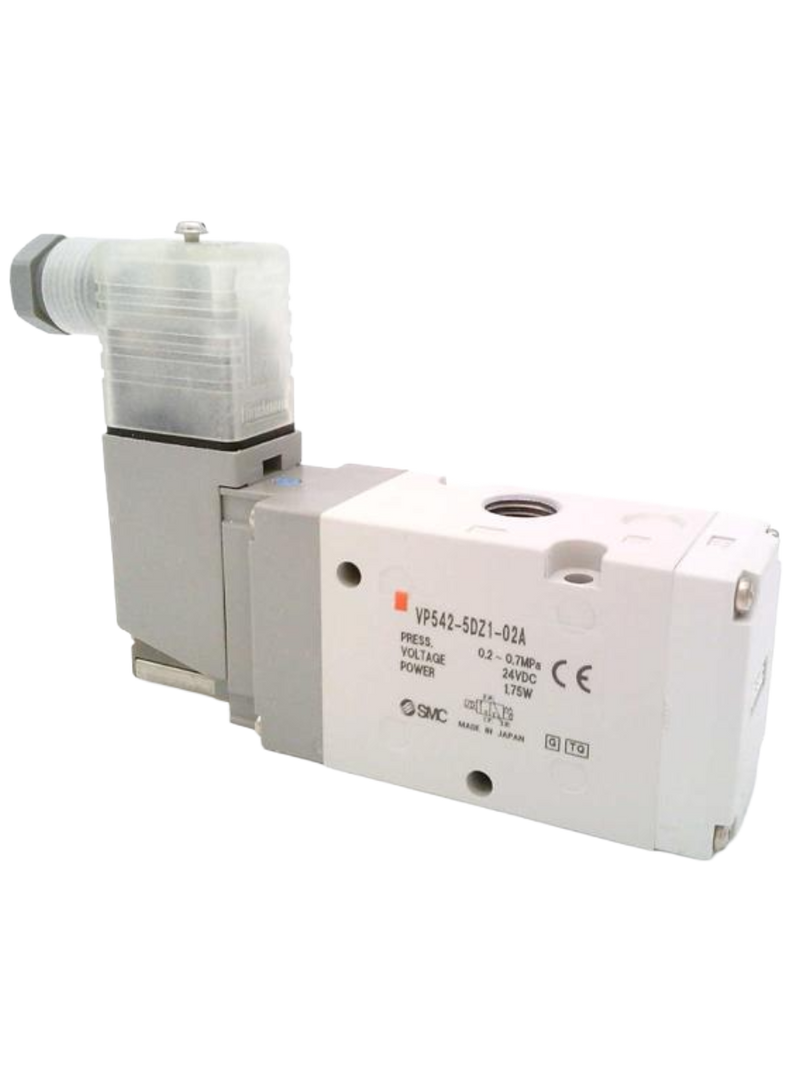

SMC VP5425YD103FA (VP542-5YD1-03FA) - 3 Port Solenoid Valve Rubber Seal Pilot Poppet Type, DIN Terminal With Connector, G3/8 Port
SMC VP5425YD103FA 3 Port Solenoid Valve Rubber Seal Pilot Poppet Type — internal pilot with the DIN connector supplied fitted and a push-turn locking slotted manual override. VP500 3 port solenoid valve, rubber seal pilot poppet type, body ported single unit, internal pilot, standard 0.7 MPa, 24 VDC, DIN EN175301-803 terminal with connector, push-turn locking slotted manual override, G3/8 port, N.C.
MPN: VP542-5YD1-03FA · SKU: VP5425YD103FA
VP542-5YD1-03FA Applications
The SMC VP5425YD103FA is used for supply and exhaust switching on air circuits that need a long service life. It is suited to air reservoir charging, blow-off duty, and residual pressure exhaust on general factory automation. The pilot poppet construction is rated for 50 million cycles or more and includes a strainer in the pilot valve to resist contamination. Supplying the DIN connector already fitted saves sourcing it separately, and the slotted locking manual override allows safe commissioning with a screwdriver.
VP542-5YD1-03FA Specifications
| Brand | SMC | Manufacturer Part No. | VP542-5YD1-03FA |
| Product Type | 3 Port Solenoid Valve Rubber Seal Pilot Poppet Type | Series | VP300/500/700 |
| SMC Series Description | VP300/500/700 Series 3 Port Solenoid Valve Rubber Seal Pilot Poppet Type Body Ported Single Unit | Series Code | 5 - VP500 |
| Pilot Type | Internal Pilot | Pressure Specification | Standard (0.7 MPa) |
| Coil Specifications | Standard | Rated Voltage | 5 - 24 VDC |
| Electrical Entry | Y - DIN (EN175301-803) Terminal With Connector | Light/Surge Voltage Suppressor | Without Light/Surge Voltage Suppressor |
| Manual Override | D - Push-turn Locking Slotted Type | Port Size | 03 - 3/8 |
| Thread Type | F - G | Type Of Actuation | A - N.C. |
| Bracket | None | Made To Order | Standard |
