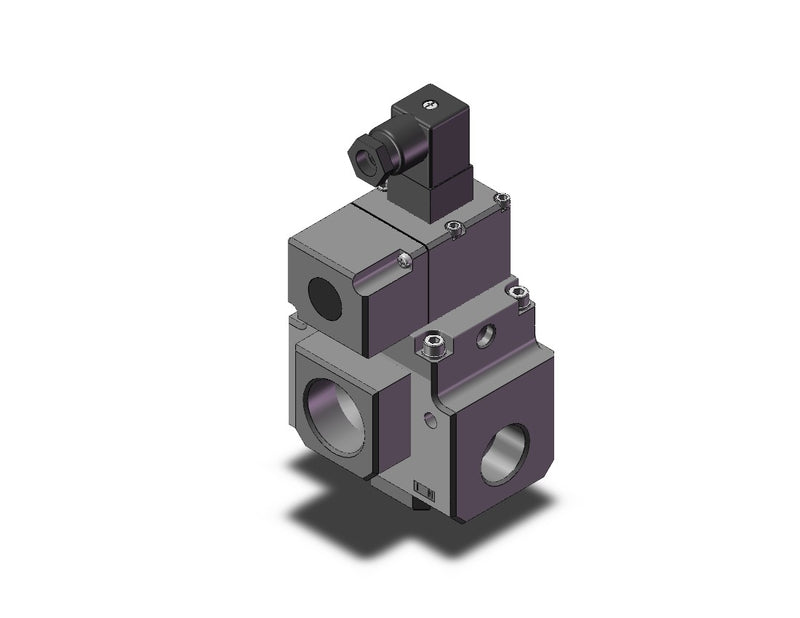

SMC VP3165V105DA1 (VP3165V-105DA1) - Large Size 3 Port Solenoid Valve, 1 inch Port, External Pilot
SMC VP3165V105DA1 Large Size 3 Port Solenoid Valve — 1 inch port for vacuum/low pressure with external pilot. Body size 1 inch, for vacuum/low pressure, 24 VDC, DIN terminal, N.C., external pilot, Rc.
MPN: VP3165V-105DA1 · SKU: VP3165V105DA1
VP3165V-105DA1 Applications
The SMC VP3165V105DA1 is a large-size 3 port solenoid valve configured for vacuum and low-pressure service with a 1 inch port. It is used in vacuum handling, dust-collector pulse lines, and large-bore blow-off or evacuation circuits in packaging and process plants. It suits applications needing high flow at low differential pressure, external pilot supply where line pressure alone cannot shift the spool, and DIN-terminal panel wiring at 24 VDC. The normally-closed action closes the line on power loss.
VP3165V-105DA1 Specifications
| Body Size | 1 | Manufacturer Part No. | VP3165V-105DA1 |
| Valve Option | For Vacuum/Low Pressure | Port Size | 1 |
| Coil Rated Voltage | 24 VDC | Electrical Entry | DIN Terminal |
| Type Of Actuation | N.C. | Pilot Type | External Pilot |
| Thread Type | Rc | Part Number Decode | VP31|6|5 = VP3165 (Body Size 6 = 1 inch) | V = For Vacuum/Low Pressure | 10 = Port Size 1 inch | 5 = 24 VDC | D = DIN Terminal | A = N.C. | 1 = External Pilot |
| Verification Note | Confirmed on SMC's WEB Catalog as VP3165V-105DA1 in the 'VP3145/3165/3185 Series, Rubber Seal, Large Size 3 Port' range -- it is a 3-port valve. |
