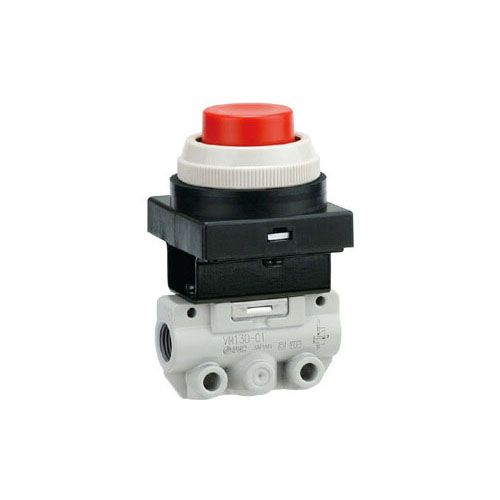

SMC VM1300133 Mechanical Valve — Rc1/8 port, 3-port, flush push button. 3-port mechanical poppet valve, Series VM100. Body VM130 (3-port, side piping), Rc1/8 (01) port, flush push-button actuator (33). Fluid: air. Operating pressure -100 kPa to 1.0 MPa. Ambient/fluid temperature -5 to 60 C (no freezing). Effective area 2.5 mm2 (124.81 Nl/min). Compact, lightweight body with a variety of actuator styles; side-ported for flexible mounting.
MPN: VM130-01-33 · SKU: VM1300133
VM130-01-33 Applications
Manually or mechanically actuated 3-port poppet valve used to switch small-bore pneumatic pilot and control circuits. The flush push-button actuator (33) gives a low-profile momentary control input, while the compact side-ported VM130 body saves panel space and allows flexible mounting. Rc1/8 (01) porting and operation from -100 kPa to 1.0 MPa suit both pressure and vacuum pilot-signal duties in automation equipment.
VM130-01-33 Specifications
| Brand | SMC | Manufacturer Part No. | VM130-01-33 |
| Series | VM100 | Type | 3-Port Mechanical Valve (Poppet) |
| Body | VM130 (3-Port, Side Piping) | Port Size | Rc1/8 (01) |
| Actuator | Push Button (Flush) (33) | Number of Ports | 3 |
| Fluid | Air | Operating Pressure Range | -100 kPa to 1.0 MPa |
| Ambient and Fluid Temperature | -5 to 60 C (No freezing) | Effective Area | 2.5 mm2 (124.81 Nl/min) |
| Valve Construction | Poppet |
VM130-01-33 Datasheet & Manual
Download Datasheet & ManualSMC VM1300133 · PDF · Official SMC documentTrusted by
SMC VM1300133 (VM130-01-33) - Mechanical Valve, Rc1/8 Port
Brand: SMC
