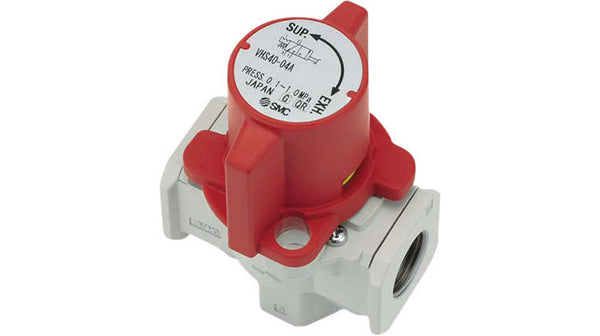

SMC VHS40F04AS (VHS40-F04A-S) - Pressure Relief 3 Port Valve With Locking Holes, Built-In Silencer EXH Port, G1/2 Port
SMC VHS40F04AS Pressure Relief 3 Port Valve With Locking Holes — built-in silencer on the exhaust port with a flame resistant PBT handle. OSHA standard conforming, single action, G1/2 port, flame resistant PBT handle and bonnet, built-in silencer on EXH port, locking holes for padlock.
MPN: VHS40-F04A-S · SKU: VHS40F04AS
VHS40-F04A-S Applications
The SMC VHS40F04AS is used where a large bore lock-out valve must dump residual air quickly without creating a loud exhaust report. It is suited to OSHA isolation points on noisy production floors, residual pressure exhaust on large cylinder circuits, and machine air shut-off where hearing protection limits apply. The built-in silencer on the exhaust port removes the need to source and fit a separate muffler, saving installation space and ensuring the exhaust flow path is correctly sized for the G1/2 body.
VHS40-F04A-S Specifications
| Brand | SMC | Manufacturer Part No. | VHS40-F04A-S |
| Product Type | Pressure Relief 3 Port Valve With Locking Holes | Series | VHS20/30/40/50 |
| SMC Series Description | VHS20-30-40-50 Series Conforming To OSHA Standard Pressure Relief 3 Port Valve With Locking Holes Single Action | Body Size | 40 |
| Thread Type | F - G | Port Size | 04 - 1/2 |
| Handle/Bonnet Material | A - Flame Resistant PBT | Option | S - Built-In Silencer EXH Port |
| Semi-standard Specifications | None | Made To Order | Standard |
| Lifecycle | Manufacture discontinued since 3/2025; replacement series VHS-D |
