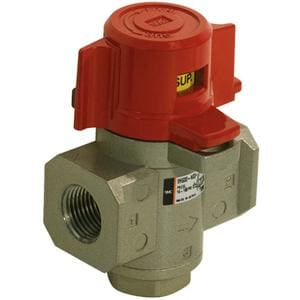

SMC VHS30N03ZD (VHS30-N03-Z-D) - Pressure Relief 3 Port Valve With Locking Holes, NPT3/8 Port, psi Imperial Label
SMC VHS30N03ZD Pressure Relief 3 Port Valve With Locking Holes — current VHS-D generation with NPT3/8 ports and a psi imperial product label. OSHA standard compliant, single action, NPT 3/8 port, red resin handle, without mounting option, without silencer, flow direction left to right, product label in imperial units psi.
MPN: VHS30-N03-Z-D · SKU: VHS30N03ZD
VHS30-N03-Z-D Applications
The SMC VHS30N03ZD is used as a lock-out air isolation valve on machinery built to North American piping and labelling conventions. It is suited to OSHA energy isolation points, residual pressure exhaust before guard access, and air shut-off on machine tools and packaging lines. As part of the current VHS-D generation it offers improved flow characteristics and zero blow-by of air during handle switching, and the imperial psi label matches gauges and documentation on plants that work in pounds per square inch.
VHS30-N03-Z-D Specifications
| Brand | SMC | Manufacturer Part No. | VHS30-N03-Z-D |
| Product Type | Pressure Relief 3 Port Valve With Locking Holes | Series | VHS-D |
| SMC Series Description | VHS-D / VHSW-D Series OSHA Standard Compliant Pressure Relief 3-Port Valve with Locking Holes Single Action/Double Action | Body Size | 30 |
| Handle Operation | Single Action | Pipe Thread Type | N - NPT |
| Port Size | 03 - 3/8 | Mounting | Without Mounting Option |
| Silencer | Without Silencer | Handle Color | Red |
| Handle Material | Resin | Flow Direction | Left To Right |
| Pressure Unit | Z - Product Label In Imperial Units: psi | Made To Order | Standard |
