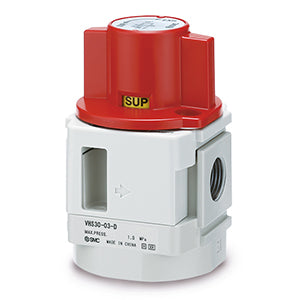

SMC VHS30F02D Lockable Shut-Off Valve — G1/4 port, size 30, single action. 3-port manual residual-pressure-release (lockable shut-off) valve. Body size 30, G1/4 (F02) port. Single action, red flame-resistant PBT handle on white aluminium die-cast (ADC12) body. Fluid: air. Operating pressure 0.1 to 1.0 MPa, proof pressure 1.5 MPa. Ambient/fluid temperature -5 to 60 C (no freezing). 90-degree switching, rotating torque 1.0 N-m or less. Padlockable in exhaust position for energy isolation (LOTO), OSHA compliant, VHS-D generation with indicator window.
MPN: VHS30-F02-D · SKU: VHS30F02D
VHS30-F02-D Applications
Isolates supply pressure and safely exhausts downstream residual air before maintenance on size-30 pneumatic lines. The red handle padlocks in the OFF/exhaust position to serve as a lockout-tagout energy-isolation point. The G1/4 (F02) porting suits medium-flow circuits and FRL air-preparation combinations. Part of the OSHA-compliant VHS-D generation offering an indicator window and reduced pressure drop.
VHS30-F02-D Specifications
| Brand | SMC | Manufacturer Part No. | VHS30-F02-D |
| Series | VHS | Type | 3-Port Residual Pressure Relief (Lockable Shut-Off) Valve |
| Body Size | 30 | Port Size | G1/4 (F02) |
| Thread Type | G | Handle Operation | Single Action |
| Fluid | Air | Operating Pressure Range | 0.1 to 1.0 MPa |
| Proof Pressure | 1.5 MPa | Ambient and Fluid Temperature | -5 to 60 C (No freezing) |
| Switching Angle | 90 degrees | Rotating Torque | 1.0 N-m or less |
| Handle Color | Red | Body Color | White |
| Handle/Bonnet Material | Flame-resistant PBT | Body Material | Aluminium die-cast (ADC12) |
| Standard Compliance | OSHA |
VHS30-F02-D Datasheet & Manual
Download Datasheet & ManualSMC VHS30F02D · PDF · Official SMC documentTrusted by
SMC VHS30F02D (VHS30-F02-D) - Lockable Shut-Off Valve, G1/4 Port
Brand: SMC
