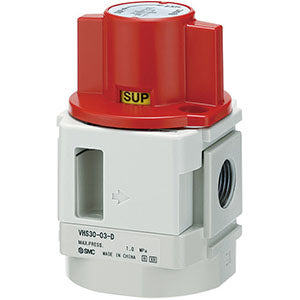

SMC VHS3003MD (VHS30-03-M-D) - Pressure Relief 3 Port Valve with Locking Holes, 3/8 Rc Port, Metal Handle
SMC VHS3003MD Pressure Relief 3 Port Valve with Locking Holes — 3/8 Rc port with metal handle, single action. Body size 30, single action, Rc thread, 3/8 port, metal handle, red, flow left to right.
MPN: VHS30-03-M-D · SKU: VHS3003MD
VHS30-03-M-D Applications
The SMC VHS3003MD is an OSHA-compliant residual pressure relief valve fitted with locking holes, used at the inlet of an air-preparation set to isolate and exhaust a machine before maintenance. It is suited to lock-out/tag-out procedures, machine-guarding compliance, and safe servicing of pneumatic lines in automotive and general manufacturing plants. The metal handle accepts a padlock so the supply cannot be restored while an engineer is working, and the valve vents trapped downstream pressure rather than merely shutting it off.
VHS30-03-M-D Specifications
| Body Size | 30 | Manufacturer Part No. | VHS30-03-M-D |
| Handle Operation | Single Action | Pipe Thread Type | Rc |
| Port Size | 3/8 | Mounting | Without Mounting Option |
| Silencer | Without Silencer | Handle Color | Red |
| Handle Material | Metal | Flow Direction | Flow Direction:Left To Right |
| Pressure Unit | Product Label In SI Units: MPa | Made To Order | Standard |
| Part Number Decode | VHS30 = Body Size 30 | 03 = 3/8 | M = Metal handle | D = VHS-D series designator (not an option code) | Verification Note | Confirmed on SMC's WEB Catalog as VHS30-03-M-D, in the 'VHS-D/VHSW-D Series OSHA Standard Compliant Pressure Relief 3-Port Valve with Locking Holes' range -- not the VHS air-combination-attachment range. |
