SMC VHS20F02D Lockable Shut-Off Valve — G1/4 port, size 20, single action. 3-port manual residual-pressure-release (lockable shut-off) valve. Body size 20, G1/4 (F02) port. Single action, red flame-resistant PBT handle on white aluminium die-cast (ADC12) body. Fluid: air. Operating pressure 0.1 to 1.0 MPa, proof pressure 1.5 MPa. Ambient/fluid temperature -5 to 60 C (no freezing). 90-degree handle switching, rotating torque 0.7 N-m or less. Padlockable in the exhaust position for energy isolation (LOTO), OSHA compliant. VHS-D generation with indicator window.
MPN: VHS20-F02-D · SKU: VHS20F02D
VHS20-F02-D Applications
Used to isolate supply pressure and safely exhaust downstream residual pressure in pneumatic circuits before maintenance. The red handle can be padlocked in the OFF/exhaust position to form part of a lockout-tagout energy-isolation system. The G1/4 (F02), size-20 body suits smaller lines and modular FRL air-preparation combinations. The VHS-D generation adds an indicator window and improved flow with zero blow-by during switching.
VHS20-F02-D Specifications
| Brand | SMC | Manufacturer Part No. | VHS20-F02-D |
| Series | VHS | Type | 3-Port Residual Pressure Relief (Lockable Shut-Off) Valve |
| Body Size | 20 | Port Size | G1/4 (F02) |
| Thread Type | G | Handle Operation | Single Action |
| Fluid | Air | Operating Pressure Range | 0.1 to 1.0 MPa |
| Proof Pressure | 1.5 MPa | Ambient and Fluid Temperature | -5 to 60 C (No freezing) |
| Switching Angle | 90 degrees | Rotating Torque | 0.7 N-m or less |
| Handle Color | Red | Body Color | White |
| Handle/Bonnet Material | Flame-resistant PBT | Body Material | Aluminium die-cast (ADC12) |
| Standard Compliance | OSHA |
VHS20-F02-D Datasheet & Manual
Download Datasheet & ManualSMC VHS20F02D · PDF · Official SMC documentTrusted by

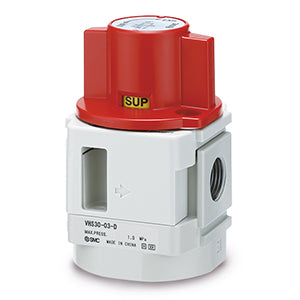

SMC VHS20F02D (VHS20-F02-D) - Lockable Shut-Off Valve, G1/4 Port
