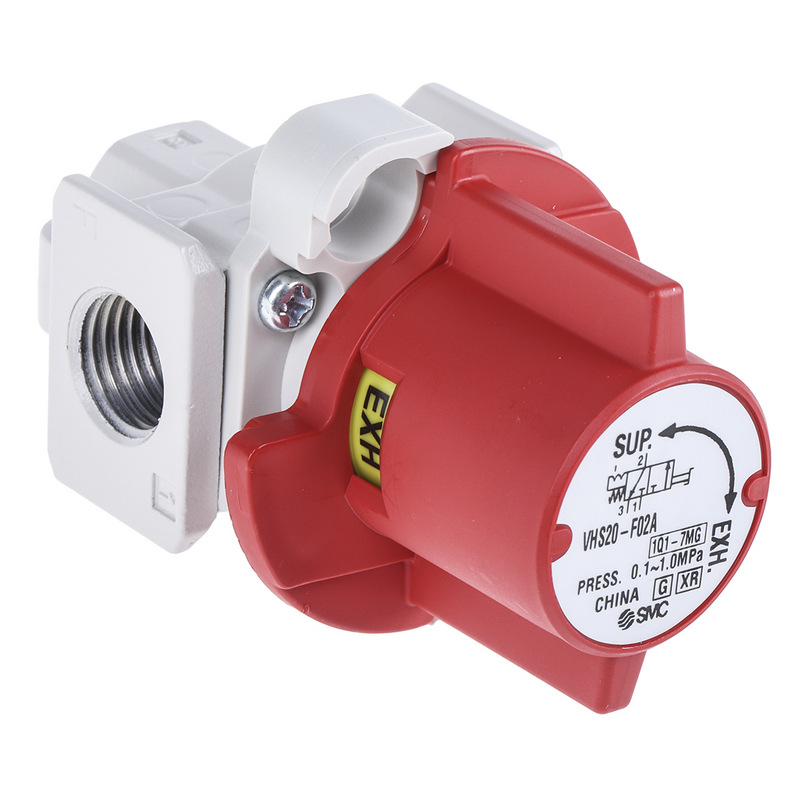

SMC VHS20F02AB (VHS20-F02A-B) - Pressure Relief 3 Port Valve With Locking Holes, Flame Resistant PBT Handle, With Bracket
SMC VHS20F02AB Pressure Relief 3 Port Valve With Locking Holes — flame resistant PBT handle/bonnet supplied with a mounting bracket. OSHA standard conforming, single action, G1/4 port, flame resistant PBT handle and bonnet, with bracket, locking holes for padlock.
MPN: VHS20-F02A-B · SKU: VHS20F02AB
VHS20-F02A-B Applications
The SMC VHS20F02AB is used as a lock-out air shut-off at the inlet of machinery covered by OSHA energy isolation rules. It is suited to protecting personnel cleaning or servicing equipment, exhausting residual line pressure before a guard is opened, and providing a padlockable isolation point on packaging and assembly cells. The flame resistant PBT handle suits areas where ignition risk matters, and the supplied bracket lets the valve be mounted directly to a frame without a separate adapter plate.
VHS20-F02A-B Specifications
| Brand | SMC | Manufacturer Part No. | VHS20-F02A-B |
| Product Type | Pressure Relief 3 Port Valve With Locking Holes | Series | VHS20/30/40/50 |
| SMC Series Description | VHS20-30-40-50 Series Conforming To OSHA Standard Pressure Relief 3 Port Valve With Locking Holes Single Action | Body Size | 20 |
| Thread Type | F - G | Port Size | 02 - 1/4 |
| Handle/Bonnet Material | A - Flame Resistant PBT | Option | B - With Bracket |
| Semi-standard Specifications | None | Made To Order | Standard |
| Lifecycle | Manufacture discontinued since 3/2025; replacement series VHS-D |
